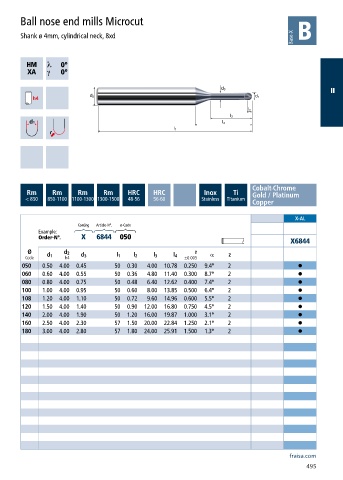

Page 497 - 21-036 APPLITEC catalogue.indb

Ball nose end mills Microcut

Shank ø 4mm, cylindrical neck, 8xd

h ƍ
a ƍ

II

Cobalt-Chrome
Rm Rm Rm Rm HRC HRC Inox Ti Gold / Platinum
< 850 850-1100 1100-1300 1300-1500 48-56 56-60 Stainless Titanium
Copper
X-AL
Coating Article-N°. ø-Code
Example:
Order-N°. X 6844 050
X6844
Ø d 2 r α
Code d 1 h4 d 3 l 1 l 2 l 3 l 4 ±0.005 z
050 0.50 4.00 0.45 50 0.30 4.00 10.78 0.250 9.4° 2 •
060 0.60 4.00 0.55 50 0.36 4.80 11.40 0.300 8.7° 2 •
080 0.80 4.00 0.75 50 0.48 6.40 12.62 0.400 7.4° 2 •
100 1.00 4.00 0.95 50 0.60 8.00 13.85 0.500 6.4° 2 •
108 1.20 4.00 1.10 50 0.72 9.60 14.96 0.600 5.5° 2 •
120 1.50 4.00 1.40 50 0.90 12.00 16.80 0.750 4.5° 2 •
140 2.00 4.00 1.90 50 1.20 16.00 19.87 1.000 3.1° 2 •
160 2.50 4.00 2.30 57 1.50 20.00 22.84 1.250 2.1° 2 •
180 3.00 4.00 2.80 57 1.80 24.00 25.91 1.500 1.3° 2 •

fraisa.com
495
