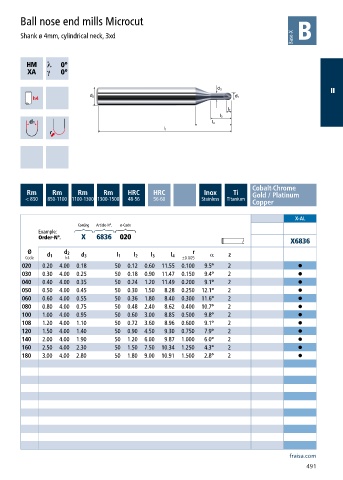

Page 493 - 21-036 APPLITEC catalogue.indb

Ball nose end mills Microcut

Shank ø 4mm, cylindrical neck, 3xd

h ƍ
a ƍ

II

Cobalt-Chrome
Rm Rm Rm Rm HRC HRC Inox Ti Gold / Platinum
< 850 850-1100 1100-1300 1300-1500 48-56 56-60 Stainless Titanium
Copper
X-AL
Coating Article-N°. ø-Code
Example:
Order-N°. X 6836 020
X6836
Ø d 2 r α
Code d 1 h4 d 3 l 1 l 2 l 3 l 4 ±0.005 z
020 0.20 4.00 0.18 50 0.12 0.60 11.55 0.100 9.5° 2 •
030 0.30 4.00 0.25 50 0.18 0.90 11.47 0.150 9.4° 2 •
040 0.40 4.00 0.35 50 0.24 1.20 11.49 0.200 9.1° 2 •
050 0.50 4.00 0.45 50 0.30 1.50 8.28 0.250 12.1° 2 •
060 0.60 4.00 0.55 50 0.36 1.80 8.40 0.300 11.6° 2 •
080 0.80 4.00 0.75 50 0.48 2.40 8.62 0.400 10.7° 2 •
100 1.00 4.00 0.95 50 0.60 3.00 8.85 0.500 9.8° 2 •
108 1.20 4.00 1.10 50 0.72 3.60 8.96 0.600 9.1° 2 •
120 1.50 4.00 1.40 50 0.90 4.50 9.30 0.750 7.9° 2 •
140 2.00 4.00 1.90 50 1.20 6.00 9.87 1.000 6.0° 2 •
160 2.50 4.00 2.30 50 1.50 7.50 10.34 1.250 4.3° 2 •
180 3.00 4.00 2.80 50 1.80 9.00 10.91 1.500 2.8° 2 •
