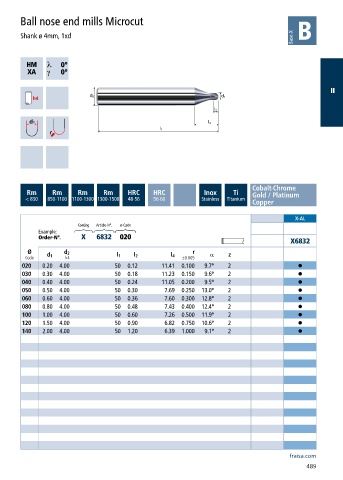

Ball nose end mills Microcut

Shank ø 4mm, 1xd

h ƍ
a ƍ

II

Cobalt-Chrome
Rm Rm Rm Rm HRC HRC Inox Ti Gold / Platinum
< 850 850-1100 1100-1300 1300-1500 48-56 56-60 Stainless Titanium
Copper
X-AL
Coating Article-N°. ø-Code
Example:
Order-N°. X 6832 020
X6832
Ø d 2 r α
Code d 1 h4 l 1 l 2 l 4 ±0.005 z
020 0.20 4.00 50 0.12 11.41 0.100 9.7° 2 •
030 0.30 4.00 50 0.18 11.23 0.150 9.6° 2 •
040 0.40 4.00 50 0.24 11.05 0.200 9.5° 2 •
050 0.50 4.00 50 0.30 7.69 0.250 13.0° 2 •
060 0.60 4.00 50 0.36 7.60 0.300 12.8° 2 •
080 0.80 4.00 50 0.48 7.43 0.400 12.4° 2 •
100 1.00 4.00 50 0.60 7.26 0.500 11.9° 2 •
120 1.50 4.00 50 0.90 6.82 0.750 10.6° 2 •
140 2.00 4.00 50 1.20 6.39 1.000 9.1° 2 •
