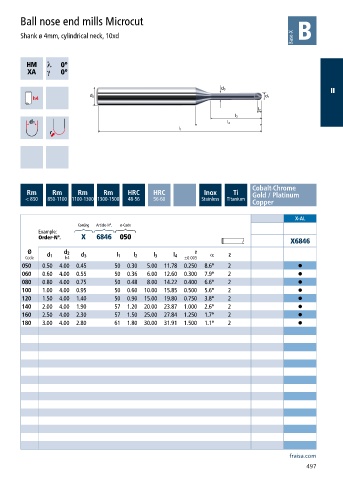

Ball nose end mills Microcut

Shank ø 4mm, cylindrical neck, 10xd

h ƍ
a ƍ

II

Cobalt-Chrome
Rm Rm Rm Rm HRC HRC Inox Ti Gold / Platinum
< 850 850-1100 1100-1300 1300-1500 48-56 56-60 Stainless Titanium
Copper
X-AL
Coating Article-N°. ø-Code
Example:
Order-N°. X 6846 050
X6846
Ø d 2 r α
Code d 1 h4 d 3 l 1 l 2 l 3 l 4 ±0.005 z
050 0.50 4.00 0.45 50 0.30 5.00 11.78 0.250 8.6° 2 •
060 0.60 4.00 0.55 50 0.36 6.00 12.60 0.300 7.9° 2 •
080 0.80 4.00 0.75 50 0.48 8.00 14.22 0.400 6.6° 2 •
100 1.00 4.00 0.95 50 0.60 10.00 15.85 0.500 5.6° 2 •
120 1.50 4.00 1.40 50 0.90 15.00 19.80 0.750 3.8° 2 •
140 2.00 4.00 1.90 57 1.20 20.00 23.87 1.000 2.6° 2 •
160 2.50 4.00 2.30 57 1.50 25.00 27.84 1.250 1.7° 2 •
180 3.00 4.00 2.80 61 1.80 30.00 31.91 1.500 1.1° 2 •
