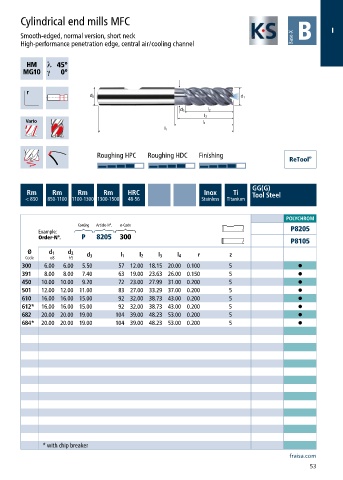

Cylindrical end mills MFC
I
Smooth-edged, normal version, short neck
High-performance penetration edge, central air/cooling channel

h ƍ
a ƍ

Roughing HPC Roughing HDC Finishing

GG(G)
Rm Rm Rm Rm HRC Inox Ti Tool Steel
< 850 850-1100 1100-1300 1300-1500 48-56 Stainless Titanium

POLYCHROM
Coating Article-N°. ø-Code
Example: P8205
Order-N°. P 8205 300
P8105
Ø d 1 d 2
Code e8 h5 d 3 l 1 l 2 l 3 l 4 r z
300 6.00 6.00 5.50 57 12.00 18.15 20.00 0.100 5 •
391 8.00 8.00 7.40 63 19.00 23.63 26.00 0.150 5 •
450 10.00 10.00 9.20 72 23.00 27.99 31.00 0.200 5 •
501 12.00 12.00 11.00 83 27.00 33.29 37.00 0.200 5 •
610 16.00 16.00 15.00 92 32.00 38.73 43.00 0.200 5 •
612* 16.00 16.00 15.00 92 32.00 38.73 43.00 0.200 5 •
682 20.00 20.00 19.00 104 39.00 48.23 53.00 0.200 5 •
684* 20.00 20.00 19.00 104 39.00 48.23 53.00 0.200 5 •

* with chip breaker
fraisa.com
53
