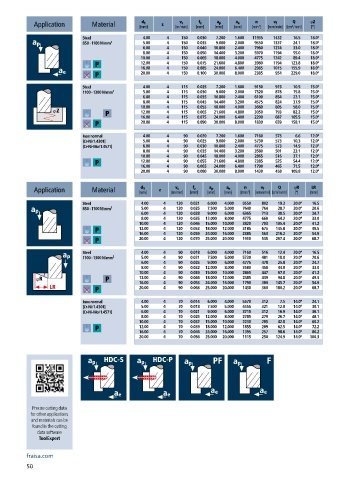

Application Material [mm] z [m/min] [mm] [mm] [mm] [min ] -1 [mm/min] [cm /min] jZ
3
[°]
Steel 4.00 4 150 0.030 7.200 1.600 11935 1432 16.5 18.0°
850 - 1100 N/mm² 5.00 4 150 0.035 9.000 2.000 9550 1337 24.1 18.0°
6.00 4 150 0.040 10.800 2.400 7960 1274 33.0 18.0°
8.00 4 150 0.050 14.400 3.200 5970 1194 55.0 18.0°
10.00 4 150 0.065 18.000 4.000 4775 1242 89.4 18.0°
12.00 4 150 0.075 21.600 4.800 3980 1194 123.8 18.0°
16.00 4 150 0.085 24.000 6.400 2985 1015 155.9 18.0°
20.00 4 150 0.100 30.000 8.000 2385 954 229.0 18.0°
Steel 4.00 4 115 0.025 7.200 1.600 9150 915 10.5 15.0°
1100 - 1300 N/mm² 5.00 4 115 0.030 9.000 2.000 7320 878 15.8 15.0°
6.00 4 115 0.035 10.800 2.400 6100 854 22.1 15.0°
8.00 4 115 0.045 14.400 3.200 4575 824 37.9 15.0°
10.00 4 115 0.055 18.000 4.000 3660 805 58.0 15.0°
12.00 4 115 0.065 21.600 4.800 3050 793 82.2 15.0°
16.00 4 115 0.075 24.000 6.400 2290 687 105.5 15.0°
20.00 4 115 0.090 30.000 8.000 1830 659 158.1 15.0°
Inox normal 4.00 4 90 0.020 7.200 1.600 7160 573 6.6 12.0°
[Cr-Ni/1.4301] 5.00 4 90 0.025 9.000 2.000 5730 573 10.3 12.0°
[Cr-Ni-Mo/1.4571] 6.00 4 90 0.030 10.800 2.400 4775 573 14.9 12.0°
8.00 4 90 0.035 14.400 3.200 3580 501 23.1 12.0°
10.00 4 90 0.045 18.000 4.000 2865 516 37.1 12.0°
12.00 4 90 0.055 21.600 4.800 2385 525 54.4 12.0°
16.00 4 90 0.065 24.000 6.400 1790 465 71.5 12.0°
20.00 4 90 0.080 30.000 8.000 1430 458 109.8 12.0°
a e
n
v f
v c
f z
a p
LR
d 1
Q
Application Material [mm] z [m/min] [mm] [mm] [mm] [min ] [mm/min] [cm /min] jR [mm]
3
-1
[°]
Steel 4.00 4 120 0.021 6.000 4.000 9550 802 19.3 20.0° 16.5
850 - 1100 N/mm² 5.00 4 120 0.025 7.500 5.000 7640 764 28.7 20.0° 20.6
6.00 4 120 0.028 9.000 6.000 6365 713 38.5 20.0° 24.7
8.00 4 120 0.035 12.000 8.000 4775 669 64.2 20.0° 33.0
10.00 4 120 0.046 15.000 10.000 3820 703 105.4 20.0° 41.2
12.00 4 120 0.053 18.000 12.000 3185 675 145.8 20.0° 49.5
16.00 4 120 0.059 24.000 16.000 2385 563 216.2 20.0° 54.9
20.00 4 120 0.070 25.000 20.000 1910 535 267.4 20.0° 68.7
Steel 4.00 4 90 0.018 6.000 4.000 7160 516 12.4 20.0° 16.5
1100 - 1300 N/mm² 5.00 4 90 0.021 7.500 5.000 5730 481 18.0 20.0° 20.6
6.00 4 90 0.025 9.000 6.000 4775 478 25.8 20.0° 24.7
8.00 4 90 0.032 12.000 8.000 3580 458 44.0 20.0° 33.0
10.00 4 90 0.039 15.000 10.000 2865 447 67.0 20.0° 41.2
12.00 4 90 0.046 18.000 12.000 2385 439 94.8 20.0° 49.5
16.00 4 90 0.053 24.000 16.000 1790 380 145.7 20.0° 54.9
20.00 4 90 0.063 25.000 20.000 1430 360 180.2 20.0° 68.7
Inox normal 4.00 4 70 0.014 6.000 4.000 5570 312 7.5 14.0° 24.1
[Cr-Ni/1.4301] 5.00 4 70 0.018 7.500 5.000 4455 321 12.0 14.0° 30.1
[Cr-Ni-Mo/1.4571] 6.00 4 70 0.021 9.000 6.000 3715 312 16.9 14.0° 36.1
8.00 4 70 0.025 12.000 8.000 2785 279 26.7 14.0° 48.1
10.00 4 70 0.032 15.000 10.000 2230 285 42.8 14.0° 60.2
12.00 4 70 0.039 18.000 12.000 1855 289 62.5 14.0° 72.2
16.00 4 70 0.046 24.000 16.000 1395 257 98.6 14.0° 80.2
20.00 4 70 0.056 25.000 20.000 1115 250 124.9 14.0° 100.3
Precise cutting data
for other applications
and materials can be
found in the cutting
data software
ToolExpert
fraisa.com
