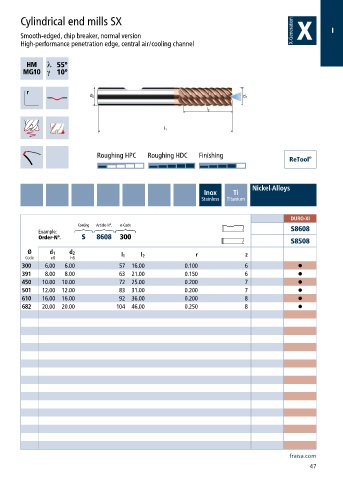

Page 49 - 21-036 APPLITEC catalogue.indb
P. 49
Cylindrical end mills SX
I
Smooth-edged, chip breaker, normal version
High-performance penetration edge, central air/cooling channel
h ƍ
a ƍ
Roughing HPC Roughing HDC Finishing
Nickel-Alloys
Inox Ti
Stainless Titanium
DURO-XI
Coating Article-N°. ø-Code
Example: S8608
Order-N°. S 8608 300
S8508
Ø d 1 d 2
Code e8 h6 l 1 l 2 r z
300 6.00 6.00 57 16.00 0.100 6 •
391 8.00 8.00 63 21.00 0.150 6 •
450 10.00 10.00 72 25.00 0.200 7 •
501 12.00 12.00 83 31.00 0.200 7 •
610 16.00 16.00 92 36.00 0.200 8 •
682 20.00 20.00 104 46.00 0.250 8 •
fraisa.com
47
