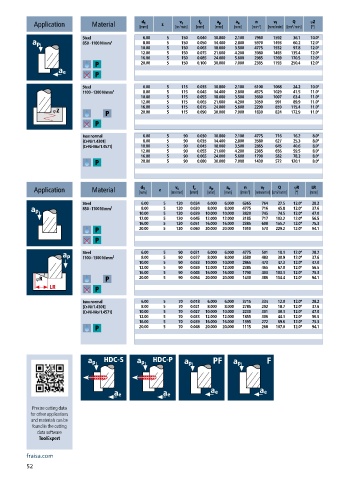

Page 54 - 21-036 APPLITEC catalogue.indb

a e
v c
v f
d 1
n
f z
a p
Q
Application Material [mm] z [m/min] [mm] [mm] [mm] [min ] -1 [mm/min] [cm /min] jZ
3
[°]
Steel 6.00 5 150 0.040 10.800 2.100 7960 1592 36.1 10.0°
850 - 1100 N/mm² 8.00 5 150 0.050 14.400 2.800 5970 1493 60.2 12.0°
10.00 5 150 0.065 18.000 3.500 4775 1552 97.8 12.0°
12.00 5 150 0.075 21.600 4.200 3980 1493 135.4 12.0°
16.00 5 150 0.085 24.000 5.600 2985 1269 170.5 12.0°
20.00 5 150 0.100 30.000 7.000 2385 1193 250.4 12.0°
Steel 6.00 5 115 0.035 10.800 2.100 6100 1068 24.2 10.0°
1100 - 1300 N/mm² 8.00 5 115 0.045 14.400 2.800 4575 1029 41.5 11.0°
10.00 5 115 0.055 18.000 3.500 3660 1007 63.4 11.0°
12.00 5 115 0.065 21.600 4.200 3050 991 89.9 11.0°
16.00 5 115 0.075 24.000 5.600 2290 859 115.4 11.0°
20.00 5 115 0.090 30.000 7.000 1830 824 172.9 11.0°
Inox normal 6.00 5 90 0.030 10.800 2.100 4775 716 16.2 8.0°
[Cr-Ni/1.4301] 8.00 5 90 0.035 14.400 2.800 3580 627 25.3 8.0°
[Cr-Ni-Mo/1.4571] 10.00 5 90 0.045 18.000 3.500 2865 645 40.6 8.0°
12.00 5 90 0.055 21.600 4.200 2385 656 59.5 8.0°
16.00 5 90 0.065 24.000 5.600 1790 582 78.2 8.0°
20.00 5 90 0.080 30.000 7.000 1430 572 120.1 8.0°
d 1
v f
LR
f z
v c
Q
n
a p
a e
Application Material [mm] z [m/min] [mm] [mm] [mm] [min ] [mm/min] [cm /min] jR [mm]
3
[°]
-1
Steel 6.00 5 120 0.024 6.000 6.000 6365 764 27.5 12.0° 28.2
850 - 1100 N/mm² 8.00 5 120 0.030 8.000 8.000 4775 716 45.8 12.0° 37.6
10.00 5 120 0.039 10.000 10.000 3820 745 74.5 12.0° 47.0
12.00 5 120 0.045 12.000 12.000 3185 717 103.2 12.0° 56.5
16.00 5 120 0.051 16.000 16.000 2385 608 155.7 12.0° 75.3
20.00 5 120 0.060 20.000 20.000 1910 573 229.2 12.0° 94.1
Steel 6.00 5 90 0.021 6.000 6.000 4775 501 18.1 12.0° 28.2
1100 - 1300 N/mm² 8.00 5 90 0.027 8.000 8.000 3580 483 30.9 12.0° 37.6
10.00 5 90 0.033 10.000 10.000 2865 473 47.3 12.0° 47.0
12.00 5 90 0.039 12.000 12.000 2385 465 67.0 12.0° 56.5
16.00 5 90 0.045 16.000 16.000 1790 403 103.1 12.0° 75.3
20.00 5 90 0.054 20.000 20.000 1430 386 154.4 12.0° 94.1
Inox normal 6.00 5 70 0.018 6.000 6.000 3715 334 12.0 12.0° 28.2
[Cr-Ni/1.4301] 8.00 5 70 0.021 8.000 8.000 2785 292 18.7 12.0° 37.6
[Cr-Ni-Mo/1.4571] 10.00 5 70 0.027 10.000 10.000 2230 301 30.1 12.0° 47.0
12.00 5 70 0.033 12.000 12.000 1855 306 44.1 12.0° 56.5
16.00 5 70 0.039 16.000 16.000 1395 272 69.6 12.0° 75.3
20.00 5 70 0.048 20.000 20.000 1115 268 107.0 12.0° 94.1
