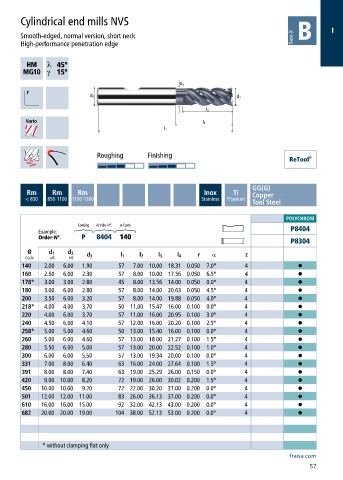

Cylindrical end mills NVS
I
Smooth-edged, normal version, short neck
High-performance penetration edge
h ƍ
a ƍ
Roughing Finishing
GG(G)
Rm Rm Rm Inox Ti Copper
< 850 850-1100 1100-1300 Stainless Titanium
Tool Steel
POLYCHROM
Coating Article-N°. ø-Code
Example: P8404
Order-N°. P 8404 140
P8304
Ø d 1 d 2 α
Code e8 h6 d 3 l 1 l 2 l 3 l 4 r z
140 2.00 6.00 1.90 57 7.00 10.00 18.31 0.050 7.0° 4 •
160 2.50 6.00 2.30 57 8.00 10.00 17.56 0.050 6.5° 4 •
178* 3.00 3.00 2.80 45 8.00 13.56 14.00 0.050 0.0° 4 •
180 3.00 6.00 2.80 57 8.00 14.00 20.63 0.050 4.5° 4 •
200 3.50 6.00 3.20 57 8.00 14.00 19.88 0.050 4.0° 4 •
218* 4.00 4.00 3.70 50 11.00 15.47 16.00 0.100 0.0° 4 •
220 4.00 6.00 3.70 57 11.00 16.00 20.95 0.100 3.0° 4 •
240 4.50 6.00 4.10 57 12.00 16.00 20.20 0.100 2.5° 4 •
258* 5.00 5.00 4.60 50 13.00 15.40 16.00 0.100 0.0° 4 •
260 5.00 6.00 4.60 57 13.00 18.00 21.27 0.100 1.5° 4 •
280 5.50 6.00 5.00 57 13.00 20.00 22.52 0.100 1.0° 4 •
300 6.00 6.00 5.50 57 13.00 19.34 20.00 0.100 0.0° 4 •
331 7.00 8.00 6.40 63 16.00 24.00 27.64 0.100 1.5° 4 •
391 8.00 8.00 7.40 63 19.00 25.29 26.00 0.150 0.0° 4 •
420 9.00 10.00 8.20 72 19.00 26.00 30.02 0.200 1.5° 4 •
450 10.00 10.00 9.20 72 22.00 30.20 31.00 0.200 0.0° 4 •
501 12.00 12.00 11.00 83 26.00 36.13 37.00 0.200 0.0° 4 •
610 16.00 16.00 15.00 92 32.00 42.13 43.00 0.200 0.0° 4 •
682 20.00 20.00 19.00 104 38.00 52.13 53.00 0.200 0.0° 4 •
* without clamping flat only
