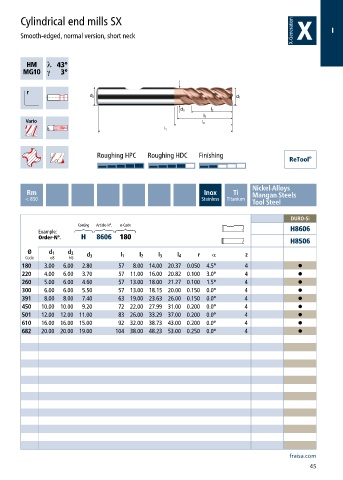

Cylindrical end mills SX
I
Smooth-edged, normal version, short neck

h ƍ
a ƍ

Roughing HPC Roughing HDC Finishing

Nickel-Alloys
Rm Inox Ti Mangan-Steels
< 850 Stainless Titanium
Tool Steel
DURO-Si
Coating Article-N°. ø-Code
Example: H8606
Order-N°. H 8606 180
H8506
Ø d 1 d 2 α
Code e8 h6 d 3 l 1 l 2 l 3 l 4 r z
180 3.00 6.00 2.80 57 8.00 14.00 20.37 0.050 4.5° 4 •
220 4.00 6.00 3.70 57 11.00 16.00 20.82 0.100 3.0° 4 •
260 5.00 6.00 4.60 57 13.00 18.00 21.27 0.100 1.5° 4 •
300 6.00 6.00 5.50 57 13.00 18.15 20.00 0.150 0.0° 4 •
391 8.00 8.00 7.40 63 19.00 23.63 26.00 0.150 0.0° 4 •
450 10.00 10.00 9.20 72 22.00 27.99 31.00 0.200 0.0° 4 •
501 12.00 12.00 11.00 83 26.00 33.29 37.00 0.200 0.0° 4 •
610 16.00 16.00 15.00 92 32.00 38.73 43.00 0.200 0.0° 4 •
682 20.00 20.00 19.00 104 38.00 48.23 53.00 0.250 0.0° 4 •
