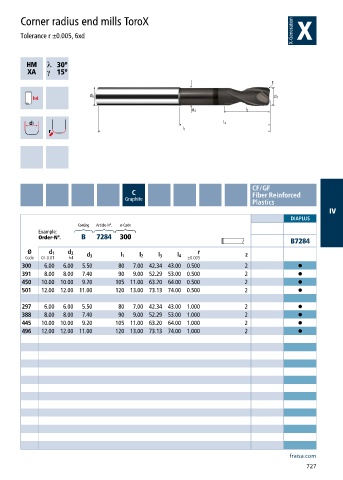

Corner radius end mills ToroX

Tolerance r ±0.005, 6xd

h ƍ
a ƍ

CF/GF
C Fiber Reinforced
Graphite
Plastics
IV
DIAPLUS
Coating Article-N°. ø-Code
Example:
Order-N°. B 7284 300
B7284
Ø d 1 d 2 r
d 3 l 1 l 2 l 3 l 4 z
Code 0/-0.01 h4 ±0.005
300 6.00 6.00 5.50 80 7.00 42.34 43.00 0.500 2 •
391 8.00 8.00 7.40 90 9.00 52.29 53.00 0.500 2 •
450 10.00 10.00 9.20 105 11.00 63.20 64.00 0.500 2 •
501 12.00 12.00 11.00 120 13.00 73.13 74.00 0.500 2 •

297 6.00 6.00 5.50 80 7.00 42.34 43.00 1.000 2 •
388 8.00 8.00 7.40 90 9.00 52.29 53.00 1.000 2 •
445 10.00 10.00 9.20 105 11.00 63.20 64.00 1.000 2 •
496 12.00 12.00 11.00 120 13.00 73.13 74.00 1.000 2 •
