P. 731

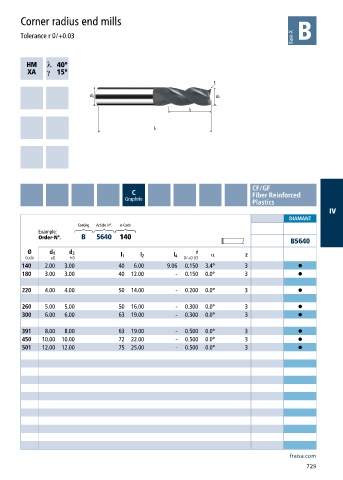

Corner radius end mills
Tolerance r 0/+0.03
h ƍ
a ƍ
CF/GF
C Fiber Reinforced
Graphite
Plastics
IV
DIAMANT
Coating Article-N°. ø-Code
Example:
Order-N°. B 5640 140
B5640
Ø d 1 d 2 r α
l 1 l 2 l 4 z
Code e8 h6 0/+0.03
140 2.00 3.00 40 6.00 9.06 0.150 3.4° 3 •
180 3.00 3.00 40 12.00 - 0.150 0.0° 3 •
220 4.00 4.00 50 14.00 - 0.200 0.0° 3 •
260 5.00 5.00 50 16.00 - 0.300 0.0° 3 •
300 6.00 6.00 63 19.00 - 0.300 0.0° 3 •
391 8.00 8.00 63 19.00 - 0.500 0.0° 3 •
450 10.00 10.00 72 22.00 - 0.500 0.0° 3 •
501 12.00 12.00 75 25.00 - 0.500 0.0° 3 •
fraisa.com
729
