P. 733

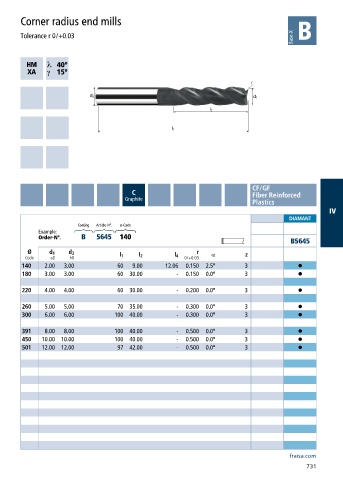

Corner radius end mills
Tolerance r 0/+0.03
h ƍ
a ƍ
CF/GF
C Fiber Reinforced
Graphite
Plastics
IV
DIAMANT
Coating Article-N°. ø-Code
Example:
Order-N°. B 5645 140
B5645
Ø d 1 d 2 r α
l 1 l 2 l 4 z
Code e8 h6 0/+0.03
140 2.00 3.00 60 9.00 12.06 0.150 2.5° 3 •
180 3.00 3.00 60 30.00 - 0.150 0.0° 3 •
220 4.00 4.00 60 30.00 - 0.200 0.0° 3 •
260 5.00 5.00 70 35.00 - 0.300 0.0° 3 •
300 6.00 6.00 100 40.00 - 0.300 0.0° 3 •
391 8.00 8.00 100 40.00 - 0.500 0.0° 3 •
450 10.00 10.00 100 40.00 - 0.500 0.0° 3 •
501 12.00 12.00 97 42.00 - 0.500 0.0° 3 •
fraisa.com
731
