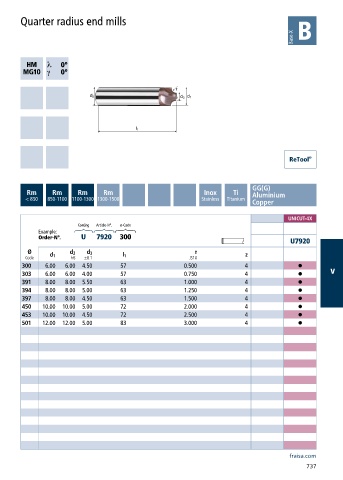

Quarter radius end mills
h ƍ
a ƍ
GG(G)
Rm Rm Rm Rm Inox Ti Aluminium
< 850 850-1100 1100-1300 1300-1500 Stainless Titanium
Copper
UNICUT-4X
Coating Article-N°. ø-Code
Example:
Order-N°. U 7920 300
U7920
Ø d 2 d 3 r
Code d 1 h6 ±0.1 l 1 JS10 z
300 6.00 6.00 4.50 57 0.500 4 •
303 6.00 6.00 4.00 57 0.750 4 • V
391 8.00 8.00 5.50 63 1.000 4 •
394 8.00 8.00 5.00 63 1.250 4 •
397 8.00 8.00 4.50 63 1.500 4 •
450 10.00 10.00 5.00 72 2.000 4 •
453 10.00 10.00 4.50 72 2.500 4 •
501 12.00 12.00 5.00 83 3.000 4 •
