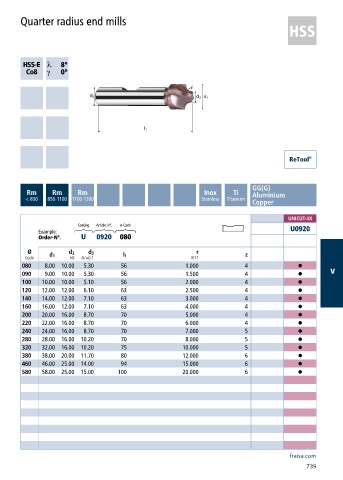

Quarter radius end mills
h ƍ
a ƍ
GG(G)
Rm Rm Rm Inox Ti Aluminium
< 850 850-1100 1100-1300 Stainless Titanium
Copper
UNICUT-4X
Coating Article-N°. ø-Code
Example: U0920
Order-N°. U 0920 080
Ø d 2 d 3 r
Code d 1 h6 0/+0.1 l 1 H11 z
080 8.00 10.00 5.30 56 1.000 4 •
090 9.00 10.00 5.30 56 1.500 4 • V
100 10.00 10.00 5.10 56 2.000 4 •
120 12.00 12.00 6.10 63 2.500 4 •
140 14.00 12.00 7.10 63 3.000 4 •
160 16.00 12.00 7.10 63 4.000 4 •
200 20.00 16.00 8.70 70 5.000 4 •
220 22.00 16.00 8.70 70 6.000 4 •
240 24.00 16.00 8.70 70 7.000 5 •
280 28.00 16.00 10.20 70 8.000 5 •
320 32.00 16.00 10.20 75 10.000 5 •
380 38.00 20.00 11.70 80 12.000 6 •
460 46.00 25.00 14.00 94 15.000 6 •
580 58.00 25.00 15.00 100 20.000 6 •
