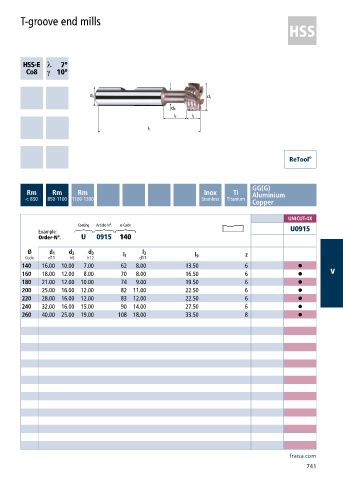

T-groove end mills
h ƍ
a ƍ
GG(G)
Rm Rm Rm Inox Ti Aluminium
< 850 850-1100 1100-1300 Stainless Titanium
Copper
UNICUT-4X
Coating Article-N°. ø-Code
Example: U0915
Order-N°. U 0915 140
Ø d 1 d 2 d 3 l 2
Code d11 h6 h12 l 1 d11 l 9 z
140 16.00 10.00 7.00 62 8.00 13.50 6 •
160 18.00 12.00 8.00 70 8.00 16.50 6 • V
180 21.00 12.00 10.00 74 9.00 19.50 6 •
200 25.00 16.00 12.00 82 11.00 22.50 6 •
220 28.00 16.00 12.00 83 12.00 22.50 6 •
240 32.00 16.00 15.00 90 14.00 27.50 6 •
260 40.00 25.00 19.00 108 18.00 33.50 8 •
