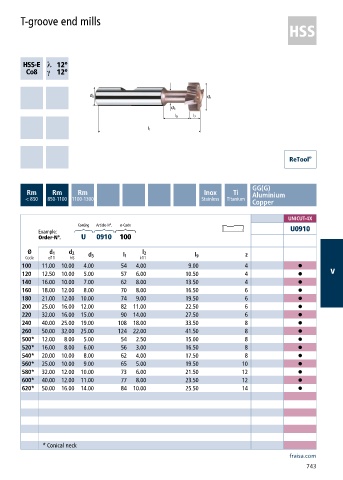

T-groove end mills

h ƍ
a ƍ

GG(G)
Rm Rm Rm Inox Ti Aluminium
< 850 850-1100 1100-1300 Stainless Titanium
Copper
UNICUT-4X
Coating Article-N°. ø-Code
Example: U0910
Order-N°. U 0910 100
Ø d 1 d 2 l 2
Code d11 h6 d 3 l 1 k11 l 9 z
100 11.00 10.00 4.00 54 4.00 9.00 4 •
120 12.50 10.00 5.00 57 6.00 10.50 4 • V
140 16.00 10.00 7.00 62 8.00 13.50 4 •
160 18.00 12.00 8.00 70 8.00 16.50 6 •
180 21.00 12.00 10.00 74 9.00 19.50 6 •
200 25.00 16.00 12.00 82 11.00 22.50 6 •
220 32.00 16.00 15.00 90 14.00 27.50 6 •
240 40.00 25.00 19.00 108 18.00 33.50 8 •
260 50.00 32.00 25.00 124 22.00 41.50 8 •
500* 12.00 8.00 5.00 54 2.50 15.00 8 •
520* 16.00 8.00 6.00 56 3.00 16.50 8 •
540* 20.00 10.00 8.00 62 4.00 17.50 8 •
560* 25.00 10.00 9.00 65 5.00 19.50 10 •
580* 32.00 12.00 10.00 73 6.00 21.50 12 •
600* 40.00 12.00 11.00 77 8.00 23.50 12 •
620* 50.00 16.00 14.00 84 10.00 25.50 14 •

* Conical neck
