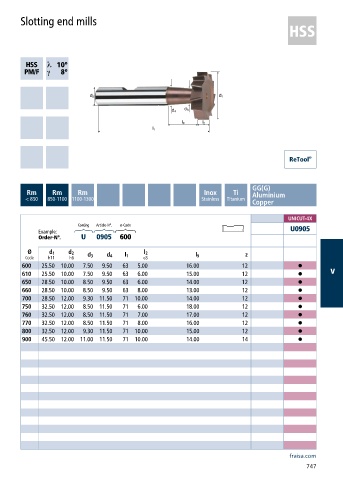

Slotting end mills

h ƍ
a ƍ

GG(G)
Rm Rm Rm Inox Ti Aluminium
< 850 850-1100 1100-1300 Stainless Titanium
Copper
UNICUT-4X
Coating Article-N°. ø-Code
Example: U0905
Order-N°. U 0905 600
Ø d 1 d 2 l 2
Code h11 h6 d 3 d 4 l 1 e8 l 9 z
600 25.50 10.00 7.50 9.50 63 5.00 16.00 12 •
610 25.50 10.00 7.50 9.50 63 6.00 15.00 12 • V
650 28.50 10.00 8.50 9.50 63 6.00 14.00 12 •
660 28.50 10.00 8.50 9.50 63 8.00 13.00 12 •
700 28.50 12.00 9.30 11.50 71 10.00 14.00 12 •
750 32.50 12.00 8.50 11.50 71 6.00 18.00 12 •
760 32.50 12.00 8.50 11.50 71 7.00 17.00 12 •
770 32.50 12.00 8.50 11.50 71 8.00 16.00 12 •
800 32.50 12.00 9.30 11.50 71 10.00 15.00 12 •
900 45.50 12.00 11.00 11.50 71 10.00 14.00 14 •
