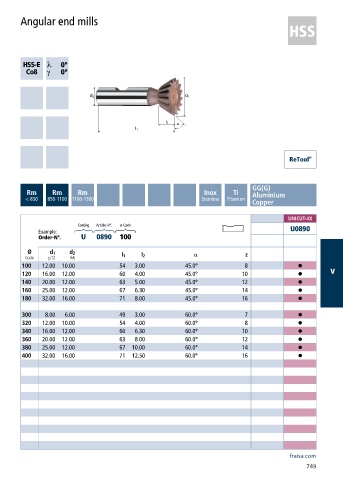

Angular end mills
h ƍ
a ƍ
GG(G)
Rm Rm Rm Inox Ti Aluminium
< 850 850-1100 1100-1300 Stainless Titanium
Copper
UNICUT-4X
Coating Article-N°. ø-Code
Example: U0890
Order-N°. U 0890 100
Ø d 1 d 2 α
Code js12 h6 l 1 l 2 z
100 12.00 10.00 54 3.00 45.0° 8 •
120 16.00 12.00 60 4.00 45.0° 10 • V
140 20.00 12.00 63 5.00 45.0° 12 •
160 25.00 12.00 67 6.30 45.0° 14 •
180 32.00 16.00 71 8.00 45.0° 16 •
300 8.00 6.00 49 3.00 60.0° 7 •
320 12.00 10.00 54 4.00 60.0° 8 •
340 16.00 12.00 60 6.30 60.0° 10 •
360 20.00 12.00 63 8.00 60.0° 12 •
380 25.00 12.00 67 10.00 60.0° 14 •
400 32.00 16.00 71 12.50 60.0° 16 •
