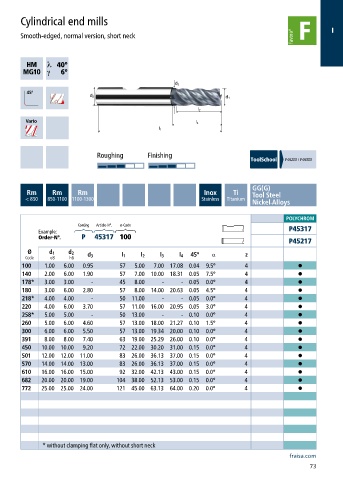

P. 75

Cylindrical end mills
                                                                                             I
       Smooth-edged, normal version, short neck


              h    ƍ
              a       ƍ












                            Roughing      Finishing
                                                                                P46200 / P46300



                                                                       GG(G)
        Rm      Rm     Rm                                 Inox    Ti   Tool Steel
        < 850  850-1100 1100-1300                        Stainless  Titanium
                                                                       Nickel-Alloys
                                                                                POLYCHROM
                       Coating  Article-N°.  ø-Code
            Example:                                                             P45317
            Order-N°.   P  45317  100
                                                                                 P45217
         Ø     d 1   d 2                                    α
        Code   e8   h6   d 3       l 1  l 2  l 3   l 4  45°          z
       100   1.00  6.00  0.95     57  5.00  7.00 17.08 0.04  9.5°    4              •
       140   2.00  6.00  1.90     57  7.00 10.00 18.31 0.05  7.5°    4              •
       178*  3.00  3.00   -       45  8.00    -    - 0.05  0.0°      4              •
       180   3.00  6.00  2.80     57  8.00 14.00 20.63 0.05  4.5°    4              •
       218*  4.00  4.00   -       50 11.00    -    - 0.05  0.0°      4              •
       220   4.00  6.00  3.70     57 11.00 16.00 20.95 0.05  3.0°    4              •
       258*  5.00  5.00   -       50 13.00    -    - 0.10  0.0°      4              •
       260   5.00  6.00  4.60     57 13.00 18.00 21.27 0.10  1.5°    4              •
       300   6.00  6.00  5.50     57 13.00 19.34 20.00 0.10  0.0°    4              •
       391   8.00  8.00  7.40     63 19.00 25.29 26.00 0.10  0.0°    4              •
       450   10.00 10.00  9.20    72 22.00 30.20 31.00 0.15  0.0°    4              •
       501   12.00 12.00 11.00    83 26.00 36.13 37.00 0.15  0.0°    4              •
       570   14.00 14.00 13.00    83 26.00 36.13 37.00 0.15  0.0°    4              •
       610   16.00 16.00 15.00    92 32.00 42.13 43.00 0.15  0.0°    4              •
       682   20.00 20.00 19.00   104 38.00 52.13 53.00 0.15  0.0°    4              •
       772   25.00 25.00 24.00   121 45.00 63.13 64.00 0.20  0.0°    4              •








             * without clamping flat only, without short neck
