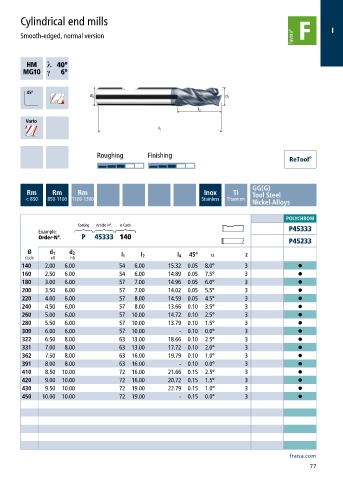

Cylindrical end mills
I
Smooth-edged, normal version

h ƍ
a ƍ

Roughing Finishing

GG(G)
Rm Rm Rm Inox Ti Tool Steel
< 850 850-1100 1100-1300 Stainless Titanium
Nickel-Alloys
POLYCHROM
Coating Article-N°. ø-Code
Example: P45333
Order-N°. P 45333 140
P45233
Ø d 1 d 2 α
Code e8 h6 l 1 l 2 l 4 45° z
140 2.00 6.00 54 6.00 15.32 0.05 8.0° 3 •
160 2.50 6.00 54 6.00 14.89 0.05 7.5° 3 •
180 3.00 6.00 57 7.00 14.96 0.05 6.0° 3 •
200 3.50 6.00 57 7.00 14.02 0.05 5.5° 3 •
220 4.00 6.00 57 8.00 14.59 0.05 4.5° 3 •
240 4.50 6.00 57 8.00 13.66 0.10 3.5° 3 •
260 5.00 6.00 57 10.00 14.72 0.10 2.5° 3 •
280 5.50 6.00 57 10.00 13.79 0.10 1.5° 3 •
300 6.00 6.00 57 10.00 - 0.10 0.0° 3 •
322 6.50 8.00 63 13.00 18.66 0.10 2.5° 3 •
331 7.00 8.00 63 13.00 17.72 0.10 2.0° 3 •
362 7.50 8.00 63 16.00 19.79 0.10 1.0° 3 •
391 8.00 8.00 63 16.00 - 0.10 0.0° 3 •
410 8.50 10.00 72 16.00 21.66 0.15 2.5° 3 •
420 9.00 10.00 72 16.00 20.72 0.15 1.5° 3 •
430 9.50 10.00 72 19.00 22.79 0.15 1.0° 3 •
450 10.00 10.00 72 19.00 - 0.15 0.0° 3 •

fraisa.com
77
