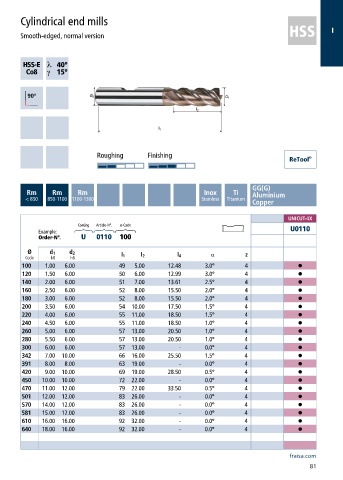

Cylindrical end mills
I
Smooth-edged, normal version
h ƍ
a ƍ
Roughing Finishing
GG(G)
Rm Rm Rm Inox Ti Aluminium
< 850 850-1100 1100-1300 Stainless Titanium
Copper
UNICUT-4X
Coating Article-N°. ø-Code
Example: U0110
Order-N°. U 0110 100
Ø d 1 d 2 α
Code k8 h6 l 1 l 2 l 4 z
100 1.00 6.00 49 5.00 12.48 3.0° 4 •
120 1.50 6.00 50 6.00 12.99 3.0° 4 •
140 2.00 6.00 51 7.00 13.61 2.5° 4 •
160 2.50 6.00 52 8.00 15.50 2.0° 4 •
180 3.00 6.00 52 8.00 15.50 2.0° 4 •
200 3.50 6.00 54 10.00 17.50 1.5° 4 •
220 4.00 6.00 55 11.00 18.50 1.5° 4 •
240 4.50 6.00 55 11.00 18.50 1.0° 4 •
260 5.00 6.00 57 13.00 20.50 1.0° 4 •
280 5.50 6.00 57 13.00 20.50 1.0° 4 •
300 6.00 6.00 57 13.00 - 0.0° 4 •
342 7.00 10.00 66 16.00 25.50 1.5° 4 •
391 8.00 8.00 63 19.00 - 0.0° 4 •
420 9.00 10.00 69 19.00 28.50 0.5° 4 •
450 10.00 10.00 72 22.00 - 0.0° 4 •
470 11.00 12.00 79 22.00 33.50 0.5° 4 •
501 12.00 12.00 83 26.00 - 0.0° 4 •
570 14.00 12.00 83 26.00 - 0.0° 4 •
581 15.00 12.00 83 26.00 - 0.0° 4 •
610 16.00 16.00 92 32.00 - 0.0° 4 •
640 18.00 16.00 92 32.00 - 0.0° 4 •
