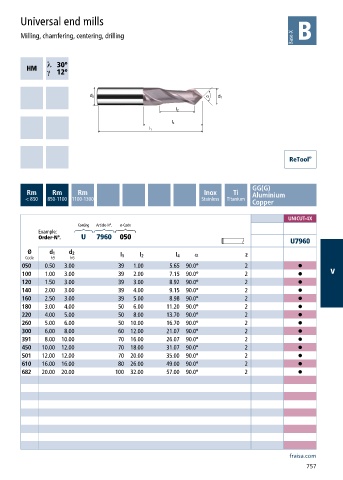

Universal end mills

Milling, chamfering, centering, drilling

h ƍ
a ƍ

GG(G)
Rm Rm Rm Inox Ti Aluminium
< 850 850-1100 1100-1300 Stainless Titanium
Copper
UNICUT-4X
Coating Article-N°. ø-Code
Example:
Order-N°. U 7960 050
U7960
Ø d 1 d 2 α
Code h9 h6 l 1 l 2 l 4 z
050 0.50 3.00 39 1.00 5.65 90.0° 2 •
100 1.00 3.00 39 2.00 7.15 90.0° 2 • V
120 1.50 3.00 39 3.00 8.92 90.0° 2 •
140 2.00 3.00 39 4.00 9.15 90.0° 2 •
160 2.50 3.00 39 5.00 8.98 90.0° 2 •
180 3.00 4.00 50 6.00 11.20 90.0° 2 •
220 4.00 5.00 50 8.00 13.70 90.0° 2 •
260 5.00 6.00 50 10.00 16.70 90.0° 2 •
300 6.00 8.00 60 12.00 21.07 90.0° 2 •
391 8.00 10.00 70 16.00 26.07 90.0° 2 •
450 10.00 12.00 70 18.00 31.07 90.0° 2 •
501 12.00 12.00 70 20.00 35.00 90.0° 2 •
610 16.00 16.00 80 26.00 49.00 90.0° 2 •
682 20.00 20.00 100 32.00 57.00 90.0° 2 •
