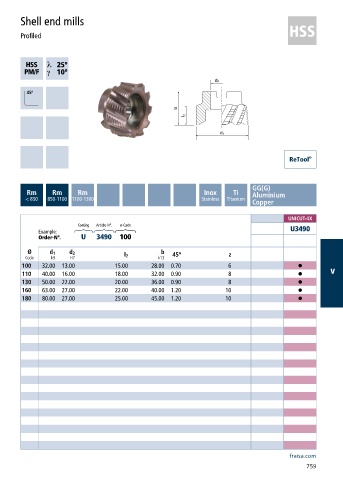

P. 761
Shell end mills
Profiled
h ƍ
a ƍ
GG(G)
Rm Rm Rm Inox Ti Aluminium
< 850 850-1100 1100-1300 Stainless Titanium
Copper
UNICUT-4X
Coating Article-N°. ø-Code
Example: U3490
Order-N°. U 3490 100
Ø d 1 d 2 b
Code k9 H7 l 2 k13 45° z
100 32.00 13.00 15.00 28.00 0.70 6 •
110 40.00 16.00 18.00 32.00 0.90 8 • V
130 50.00 22.00 20.00 36.00 0.90 8 •
160 63.00 27.00 22.00 40.00 1.20 10 •
180 80.00 27.00 25.00 45.00 1.20 10 •
fraisa.com
759
