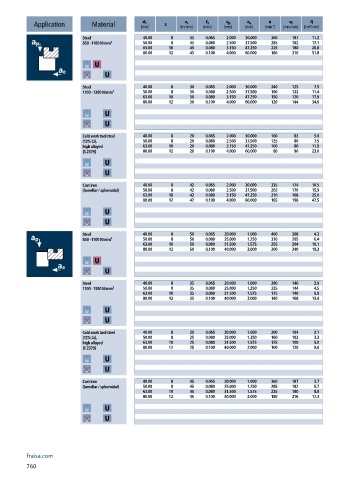

Page 762 - 21-036 APPLITEC catalogue.indb

d 1
n
v f
a e
a p
v c
f z
Q
Application Material [mm] z [m/min] [mm] [mm] [mm] [min ] -1 [mm/min] [cm /min]
3
Steel 40.00 8 45 0.065 2.000 30.000 360 187 11.2
850 - 1100 N/mm² 50.00 8 45 0.080 2.500 37.500 285 182 17.1
63.00 10 45 0.080 3.150 47.250 225 180 26.8
80.00 12 45 0.100 4.000 60.000 180 216 51.8
Steel 40.00 8 30 0.065 2.000 30.000 240 125 7.5
1100 - 1300 N/mm² 50.00 8 30 0.080 2.500 37.500 190 122 11.4
63.00 10 30 0.080 3.150 47.250 150 120 17.9
80.00 12 30 0.100 4.000 60.000 120 144 34.6
Cold work tool steel 40.00 8 20 0.065 2.000 30.000 160 83 5.0
(12% Cr), 50.00 8 20 0.080 2.500 37.500 125 80 7.5
high alloyed 63.00 10 20 0.080 3.150 47.250 100 80 11.9
[1.2379] 80.00 12 20 0.100 4.000 60.000 80 96 23.0

Cast iron 40.00 8 42 0.065 2.000 30.000 335 174 10.5
(lamellar / spheroidal) 50.00 8 42 0.080 2.500 37.500 265 170 15.9
63.00 10 42 0.080 3.150 47.250 210 168 25.0
80.00 12 42 0.100 4.000 60.000 165 198 47.5

Steel 40.00 8 50 0.065 20.000 1.000 400 208 4.2
850 - 1100 N/mm² 50.00 8 50 0.080 25.000 1.250 320 205 6.4
63.00 10 50 0.080 31.500 1.575 255 204 10.1
80.00 12 50 0.100 40.000 2.000 200 240 19.2

Steel 40.00 8 35 0.065 20.000 1.000 280 146 2.9
1100 - 1300 N/mm² 50.00 8 35 0.080 25.000 1.250 225 144 4.5
63.00 10 35 0.080 31.500 1.575 175 140 6.9
80.00 12 35 0.100 40.000 2.000 140 168 13.4

Cold work tool steel 40.00 8 25 0.065 20.000 1.000 200 104 2.1
(12% Cr), 50.00 8 25 0.080 25.000 1.250 160 102 3.2
high alloyed 63.00 10 25 0.080 31.500 1.575 125 100 5.0
[1.2379] 80.00 12 25 0.100 40.000 2.000 100 120 9.6

Cast iron 40.00 8 45 0.065 20.000 1.000 360 187 3.7
(lamellar / spheroidal) 50.00 8 45 0.080 25.000 1.250 285 182 5.7
63.00 10 45 0.080 31.500 1.575 225 180 8.9
80.00 12 45 0.100 40.000 2.000 180 216 17.3

fraisa.com
760
