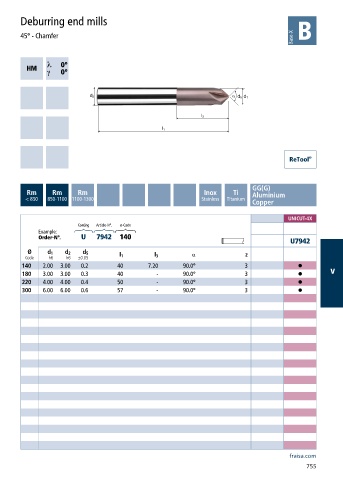

Page 757 - 21-036 APPLITEC catalogue.indb

Deburring end mills

45° - Chamfer

h ƍ
a ƍ

GG(G)
Rm Rm Rm Inox Ti Aluminium
< 850 850-1100 1100-1300 Stainless Titanium
Copper
UNICUT-4X
Coating Article-N°. ø-Code
Example:
Order-N°. U 7942 140
U7942
Ø d 1 d 2 d 5 α
Code h6 h6 ±0.05 l 1 l 3 z
140 2.00 3.00 0.2 40 7.20 90.0° 3 •
180 3.00 3.00 0.3 40 - 90.0° 3 • V
220 4.00 4.00 0.4 50 - 90.0° 3 •
300 6.00 6.00 0.6 57 - 90.0° 3 •
