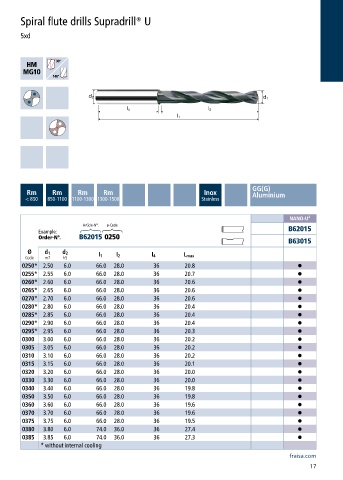

Page 19 - Carbide drills I Thread cutting tools 2023

Spiral flute drills Supradrill® U

5xd

GG(G)
Rm Rm Rm Rm Inox Aluminium
< 850 850-1100 1100-1300 1300-1500 Stainless

NANO-U²
Article-N°. ø-Code
Example: B62015
Order-N°. B62015 0250
B63015
Ø d 1 d 2
Code m7 h5 l 1 l 2 l 4 L max
0250* 2.50 6.0 66.0 28.0 36 20.8 •
0255* 2.55 6.0 66.0 28.0 36 20.7 •
0260* 2.60 6.0 66.0 28.0 36 20.6 •
0265* 2.65 6.0 66.0 28.0 36 20.6 •
0270* 2.70 6.0 66.0 28.0 36 20.6 •
0280* 2.80 6.0 66.0 28.0 36 20.4 •
0285* 2.85 6.0 66.0 28.0 36 20.4 •
0290* 2.90 6.0 66.0 28.0 36 20.4 •
0295* 2.95 6.0 66.0 28.0 36 20.3 •
0300 3.00 6.0 66.0 28.0 36 20.2 •
0305 3.05 6.0 66.0 28.0 36 20.2 •
0310 3.10 6.0 66.0 28.0 36 20.2 •
0315 3.15 6.0 66.0 28.0 36 20.1 •
0320 3.20 6.0 66.0 28.0 36 20.0 •
0330 3.30 6.0 66.0 28.0 36 20.0 •
0340 3.40 6.0 66.0 28.0 36 19.8 •
0350 3.50 6.0 66.0 28.0 36 19.8 •
0360 3.60 6.0 66.0 28.0 36 19.6 •
0370 3.70 6.0 66.0 28.0 36 19.6 •
0375 3.75 6.0 66.0 28.0 36 19.5 •
0380 3.80 6.0 74.0 36.0 36 27.4 •
0385 3.85 6.0 74.0 36.0 36 27.3 •
* without internal cooling
fraisa.com
17
