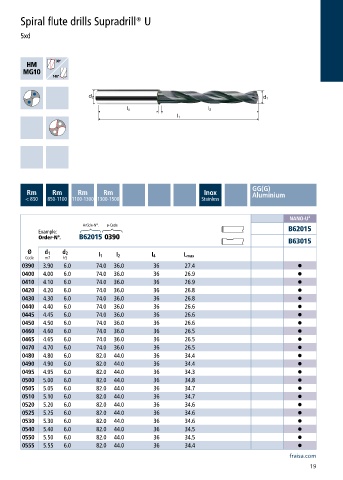

Page 21 - Carbide drills I Thread cutting tools 2023

Spiral flute drills Supradrill® U

5xd

GG(G)
Rm Rm Rm Rm Inox Aluminium
< 850 850-1100 1100-1300 1300-1500 Stainless

NANO-U²
Article-N°. ø-Code
Example: B62015
Order-N°. B62015 0390
B63015
Ø d 1 d 2
Code m7 h5 l 1 l 2 l 4 L max
0390 3.90 6.0 74.0 36.0 36 27.4 •
0400 4.00 6.0 74.0 36.0 36 26.9 •
0410 4.10 6.0 74.0 36.0 36 26.9 •
0420 4.20 6.0 74.0 36.0 36 26.8 •
0430 4.30 6.0 74.0 36.0 36 26.8 •
0440 4.40 6.0 74.0 36.0 36 26.6 •
0445 4.45 6.0 74.0 36.0 36 26.6 •
0450 4.50 6.0 74.0 36.0 36 26.6 •
0460 4.60 6.0 74.0 36.0 36 26.5 •
0465 4.65 6.0 74.0 36.0 36 26.5 •
0470 4.70 6.0 74.0 36.0 36 26.5 •
0480 4.80 6.0 82.0 44.0 36 34.4 •
0490 4.90 6.0 82.0 44.0 36 34.4 •
0495 4.95 6.0 82.0 44.0 36 34.3 •
0500 5.00 6.0 82.0 44.0 36 34.8 •
0505 5.05 6.0 82.0 44.0 36 34.7 •
0510 5.10 6.0 82.0 44.0 36 34.7 •
0520 5.20 6.0 82.0 44.0 36 34.6 •
0525 5.25 6.0 82.0 44.0 36 34.6 •
0530 5.30 6.0 82.0 44.0 36 34.6 •
0540 5.40 6.0 82.0 44.0 36 34.5 •
0550 5.50 6.0 82.0 44.0 36 34.5 •
0555 5.55 6.0 82.0 44.0 36 34.4 •
fraisa.com
19
