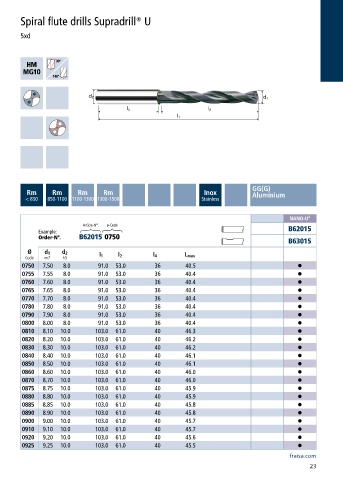

Page 25 - Carbide drills I Thread cutting tools 2023

Spiral flute drills Supradrill® U

5xd

GG(G)
Rm Rm Rm Rm Inox Aluminium
< 850 850-1100 1100-1300 1300-1500 Stainless

NANO-U²
Article-N°. ø-Code
Example: B62015
Order-N°. B62015 0750
B63015
Ø d 1 d 2
Code m7 h5 l 1 l 2 l 4 L max
0750 7.50 8.0 91.0 53.0 36 40.5 •
0755 7.55 8.0 91.0 53.0 36 40.4 •
0760 7.60 8.0 91.0 53.0 36 40.4 •
0765 7.65 8.0 91.0 53.0 36 40.4 •
0770 7.70 8.0 91.0 53.0 36 40.4 •
0780 7.80 8.0 91.0 53.0 36 40.4 •
0790 7.90 8.0 91.0 53.0 36 40.4 •
0800 8.00 8.0 91.0 53.0 36 40.4 •
0810 8.10 10.0 103.0 61.0 40 46.3 •
0820 8.20 10.0 103.0 61.0 40 46.2 •
0830 8.30 10.0 103.0 61.0 40 46.2 •
0840 8.40 10.0 103.0 61.0 40 46.1 •
0850 8.50 10.0 103.0 61.0 40 46.1 •
0860 8.60 10.0 103.0 61.0 40 46.0 •
0870 8.70 10.0 103.0 61.0 40 46.0 •
0875 8.75 10.0 103.0 61.0 40 45.9 •
0880 8.80 10.0 103.0 61.0 40 45.9 •
0885 8.85 10.0 103.0 61.0 40 45.8 •
0890 8.90 10.0 103.0 61.0 40 45.8 •
0900 9.00 10.0 103.0 61.0 40 45.7 •
0910 9.10 10.0 103.0 61.0 40 45.7 •
0920 9.20 10.0 103.0 61.0 40 45.6 •
0925 9.25 10.0 103.0 61.0 40 45.5 •
fraisa.com
23
