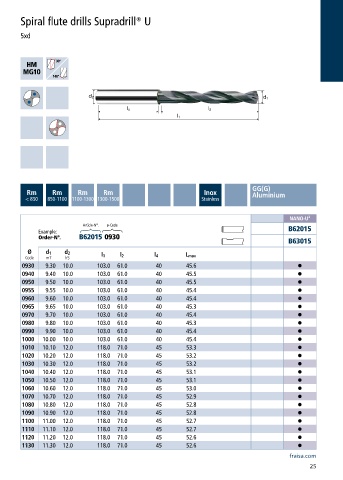

Page 27 - Carbide drills I Thread cutting tools 2023

Spiral flute drills Supradrill® U

5xd

GG(G)
Rm Rm Rm Rm Inox Aluminium
< 850 850-1100 1100-1300 1300-1500 Stainless

NANO-U²
Article-N°. ø-Code
Example: B62015
Order-N°. B62015 0930
B63015
Ø d 1 d 2
Code m7 h5 l 1 l 2 l 4 L max
0930 9.30 10.0 103.0 61.0 40 45.6 •
0940 9.40 10.0 103.0 61.0 40 45.5 •
0950 9.50 10.0 103.0 61.0 40 45.5 •
0955 9.55 10.0 103.0 61.0 40 45.4 •
0960 9.60 10.0 103.0 61.0 40 45.4 •
0965 9.65 10.0 103.0 61.0 40 45.3 •
0970 9.70 10.0 103.0 61.0 40 45.4 •
0980 9.80 10.0 103.0 61.0 40 45.3 •
0990 9.90 10.0 103.0 61.0 40 45.4 •
1000 10.00 10.0 103.0 61.0 40 45.4 •
1010 10.10 12.0 118.0 71.0 45 53.3 •
1020 10.20 12.0 118.0 71.0 45 53.2 •
1030 10.30 12.0 118.0 71.0 45 53.2 •
1040 10.40 12.0 118.0 71.0 45 53.1 •
1050 10.50 12.0 118.0 71.0 45 53.1 •
1060 10.60 12.0 118.0 71.0 45 53.0 •
1070 10.70 12.0 118.0 71.0 45 52.9 •
1080 10.80 12.0 118.0 71.0 45 52.8 •
1090 10.90 12.0 118.0 71.0 45 52.8 •
1100 11.00 12.0 118.0 71.0 45 52.7 •
1110 11.10 12.0 118.0 71.0 45 52.7 •
1120 11.20 12.0 118.0 71.0 45 52.6 •
1130 11.30 12.0 118.0 71.0 45 52.6 •
fraisa.com
25
