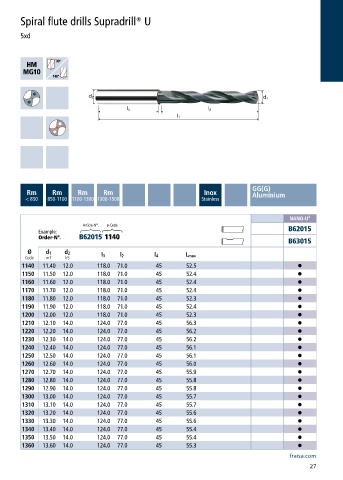

Page 29 - Carbide drills I Thread cutting tools 2023

Spiral flute drills Supradrill® U

5xd

GG(G)
Rm Rm Rm Rm Inox Aluminium
< 850 850-1100 1100-1300 1300-1500 Stainless

NANO-U²
Article-N°. ø-Code
Example: B62015
Order-N°. B62015 1140
B63015
Ø d 1 d 2
Code m7 h5 l 1 l 2 l 4 L max
1140 11.40 12.0 118.0 71.0 45 52.5 •
1150 11.50 12.0 118.0 71.0 45 52.4 •
1160 11.60 12.0 118.0 71.0 45 52.4 •
1170 11.70 12.0 118.0 71.0 45 52.4 •
1180 11.80 12.0 118.0 71.0 45 52.3 •
1190 11.90 12.0 118.0 71.0 45 52.4 •
1200 12.00 12.0 118.0 71.0 45 52.3 •
1210 12.10 14.0 124.0 77.0 45 56.3 •
1220 12.20 14.0 124.0 77.0 45 56.2 •
1230 12.30 14.0 124.0 77.0 45 56.2 •
1240 12.40 14.0 124.0 77.0 45 56.1 •
1250 12.50 14.0 124.0 77.0 45 56.1 •
1260 12.60 14.0 124.0 77.0 45 56.0 •
1270 12.70 14.0 124.0 77.0 45 55.9 •
1280 12.80 14.0 124.0 77.0 45 55.8 •
1290 12.90 14.0 124.0 77.0 45 55.8 •
1300 13.00 14.0 124.0 77.0 45 55.7 •
1310 13.10 14.0 124.0 77.0 45 55.7 •
1320 13.20 14.0 124.0 77.0 45 55.6 •
1330 13.30 14.0 124.0 77.0 45 55.6 •
1340 13.40 14.0 124.0 77.0 45 55.4 •
1350 13.50 14.0 124.0 77.0 45 55.4 •
1360 13.60 14.0 124.0 77.0 45 55.3 •
