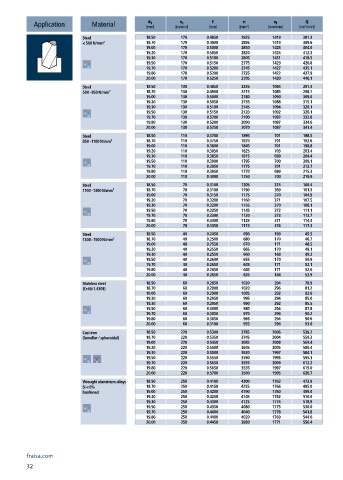

Page 34 - Carbide drills I Thread cutting tools 2023

n
v f
f
d 1
v c
Q
Application Material [mm] [m/min] [mm] [min ] -1 [mm/min] [cm /min]
3
Steel 18.50 170 0.4850 2925 1419 381.3
< 500 N/mm² 18.70 170 0.4900 2895 1419 389.6
19.00 170 0.5000 2850 1425 404.0
19.20 170 0.5050 2820 1424 412.3
19.30 170 0.5100 2805 1431 418.5
19.50 170 0.5150 2775 1429 426.8
19.70 170 0.5200 2745 1427 435.1
19.80 170 0.5200 2735 1422 437.9
20.00 170 0.5250 2705 1420 446.1
Steel 18.50 130 0.4850 2235 1084 291.4
500 - 850 N/mm² 18.70 130 0.4900 2215 1085 298.1
19.00 130 0.5000 2180 1090 309.0
19.20 130 0.5050 2155 1088 315.1
19.30 130 0.5100 2145 1094 320.1
19.50 130 0.5150 2120 1092 326.1
19.70 130 0.5200 2100 1092 332.8
19.80 130 0.5200 2090 1087 334.6
20.00 130 0.5250 2070 1087 341.4
Steel 18.50 110 0.3700 1895 701 188.5
850 - 1100 N/mm² 18.70 110 0.3750 1870 701 192.6
19.00 110 0.3800 1845 701 198.8
19.20 110 0.3850 1825 703 203.4
19.30 110 0.3850 1815 699 204.4
19.50 110 0.3900 1795 700 209.1
19.70 110 0.3950 1775 701 213.7
19.80 110 0.3950 1770 699 215.3
20.00 110 0.4000 1750 700 219.9
Steel 18.50 70 0.3100 1205 374 100.4
1100 - 1300 N/mm² 18.70 70 0.3100 1190 369 101.3
19.00 70 0.3150 1175 370 104.9
19.20 70 0.3200 1160 371 107.5
19.30 70 0.3200 1155 370 108.1
19.50 70 0.3250 1145 372 111.1
19.70 70 0.3300 1130 373 113.7
19.80 70 0.3300 1125 371 114.3
20.00 70 0.3350 1115 374 117.3
Steel 18.50 40 0.2450 690 169 45.5
1300 - 1500 N/mm² 18.70 40 0.2500 680 170 46.7
19.00 40 0.2550 670 171 48.5
19.20 40 0.2550 665 170 49.1
19.30 40 0.2550 660 168 49.2
19.50 40 0.2600 655 170 50.9
19.70 40 0.2650 645 171 52.1
19.80 40 0.2650 645 171 52.6
20.00 40 0.2650 635 168 52.9
Stainless steel 18.50 60 0.2850 1030 294 78.9
[Cr-Ni/1.4301] 18.70 60 0.2900 1020 296 81.2
19.00 60 0.2900 1005 292 82.6
19.20 60 0.2950 995 294 85.0
19.30 60 0.2950 990 292 85.5
19.50 60 0.3000 980 294 87.8
19.70 60 0.3050 970 296 90.2
19.80 60 0.3050 965 294 90.6
20.00 60 0.3100 955 296 93.0
Cast iron 18.50 220 0.5300 3785 2006 539.2
(lamellar / spheroidal) 18.70 220 0.5350 3745 2004 550.3
19.00 220 0.5450 3685 2008 569.4
19.20 220 0.5500 3645 2005 580.4
19.30 220 0.5500 3630 1997 584.1
19.50 220 0.5550 3590 1993 595.1
19.70 220 0.5650 3555 2009 612.2
19.80 220 0.5650 3535 1997 615.0
20.00 220 0.5700 3500 1995 626.7
Wrought aluminium alloys 18.50 250 0.4100 4300 1763 473.9
Si < 6% 18.70 250 0.4150 4255 1766 485.0
hardened 19.00 250 0.4200 4190 1760 499.0
19.20 250 0.4250 4145 1762 510.0
19.30 250 0.4300 4125 1774 518.9
19.50 250 0.4350 4080 1775 530.0
19.70 250 0.4400 4040 1778 541.8
19.80 250 0.4400 4020 1769 544.6
20.00 250 0.4450 3980 1771 556.4
