Page 35 - Carbide drills I Thread cutting tools 2023
P. 35

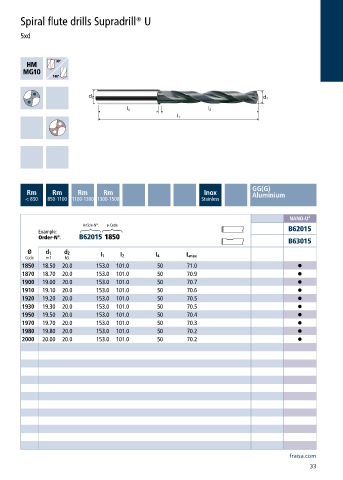

Spiral flute drills Supradrill® U
5xd
GG(G)
Rm Rm Rm Rm Inox Aluminium
< 850 850-1100 1100-1300 1300-1500 Stainless
NANO-U²
Article-N°. ø-Code
Example: B62015
Order-N°. B62015 1850
B63015
Ø d 1 d 2
Code m7 h5 l 1 l 2 l 4 L max
1850 18.50 20.0 153.0 101.0 50 71.0 •
1870 18.70 20.0 153.0 101.0 50 70.9 •
1900 19.00 20.0 153.0 101.0 50 70.7 •
1910 19.10 20.0 153.0 101.0 50 70.6 •
1920 19.20 20.0 153.0 101.0 50 70.5 •
1930 19.30 20.0 153.0 101.0 50 70.5 •
1950 19.50 20.0 153.0 101.0 50 70.4 •
1970 19.70 20.0 153.0 101.0 50 70.3 •
1980 19.80 20.0 153.0 101.0 50 70.2 •
2000 20.00 20.0 153.0 101.0 50 70.2 •
fraisa.com
33
