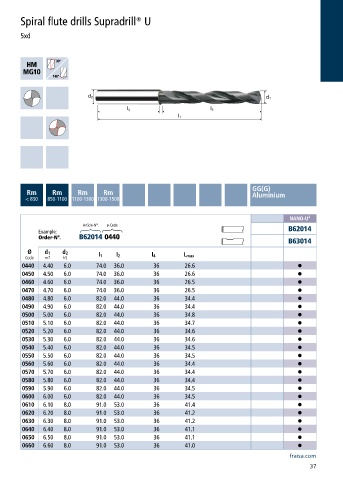

Spiral flute drills Supradrill® U
5xd
GG(G)
Rm Rm Rm Rm Aluminium
< 850 850-1100 1100-1300 1300-1500
NANO-U²
Article-N°. ø-Code
Example: B62014
Order-N°. B62014 0440
B63014
Ø d 1 d 2
Code m7 h5 l 1 l 2 l 4 L max
0440 4.40 6.0 74.0 36.0 36 26.6 •
0450 4.50 6.0 74.0 36.0 36 26.6 •
0460 4.60 6.0 74.0 36.0 36 26.5 •
0470 4.70 6.0 74.0 36.0 36 26.5 •
0480 4.80 6.0 82.0 44.0 36 34.4 •
0490 4.90 6.0 82.0 44.0 36 34.4 •
0500 5.00 6.0 82.0 44.0 36 34.8 •
0510 5.10 6.0 82.0 44.0 36 34.7 •
0520 5.20 6.0 82.0 44.0 36 34.6 •
0530 5.30 6.0 82.0 44.0 36 34.6 •
0540 5.40 6.0 82.0 44.0 36 34.5 •
0550 5.50 6.0 82.0 44.0 36 34.5 •
0560 5.60 6.0 82.0 44.0 36 34.4 •
0570 5.70 6.0 82.0 44.0 36 34.4 •
0580 5.80 6.0 82.0 44.0 36 34.4 •
0590 5.90 6.0 82.0 44.0 36 34.5 •
0600 6.00 6.0 82.0 44.0 36 34.5 •
0610 6.10 8.0 91.0 53.0 36 41.4 •
0620 6.20 8.0 91.0 53.0 36 41.2 •
0630 6.30 8.0 91.0 53.0 36 41.2 •
0640 6.40 8.0 91.0 53.0 36 41.1 •
0650 6.50 8.0 91.0 53.0 36 41.1 •
0660 6.60 8.0 91.0 53.0 36 41.0 •
