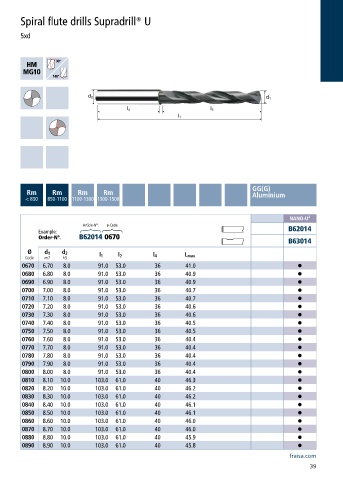

Page 41 - Carbide drills I Thread cutting tools 2023
P. 41
Spiral flute drills Supradrill® U
5xd
GG(G)
Rm Rm Rm Rm Aluminium
< 850 850-1100 1100-1300 1300-1500
NANO-U²
Article-N°. ø-Code
Example: B62014
Order-N°. B62014 0670
B63014
Ø d 1 d 2
Code m7 h5 l 1 l 2 l 4 L max
0670 6.70 8.0 91.0 53.0 36 41.0 •
0680 6.80 8.0 91.0 53.0 36 40.9 •
0690 6.90 8.0 91.0 53.0 36 40.9 •
0700 7.00 8.0 91.0 53.0 36 40.7 •
0710 7.10 8.0 91.0 53.0 36 40.7 •
0720 7.20 8.0 91.0 53.0 36 40.6 •
0730 7.30 8.0 91.0 53.0 36 40.6 •
0740 7.40 8.0 91.0 53.0 36 40.5 •
0750 7.50 8.0 91.0 53.0 36 40.5 •
0760 7.60 8.0 91.0 53.0 36 40.4 •
0770 7.70 8.0 91.0 53.0 36 40.4 •
0780 7.80 8.0 91.0 53.0 36 40.4 •
0790 7.90 8.0 91.0 53.0 36 40.4 •
0800 8.00 8.0 91.0 53.0 36 40.4 •
0810 8.10 10.0 103.0 61.0 40 46.3 •
0820 8.20 10.0 103.0 61.0 40 46.2 •
0830 8.30 10.0 103.0 61.0 40 46.2 •
0840 8.40 10.0 103.0 61.0 40 46.1 •
0850 8.50 10.0 103.0 61.0 40 46.1 •
0860 8.60 10.0 103.0 61.0 40 46.0 •
0870 8.70 10.0 103.0 61.0 40 46.0 •
0880 8.80 10.0 103.0 61.0 40 45.9 •
0890 8.90 10.0 103.0 61.0 40 45.8 •
fraisa.com
