P. 45

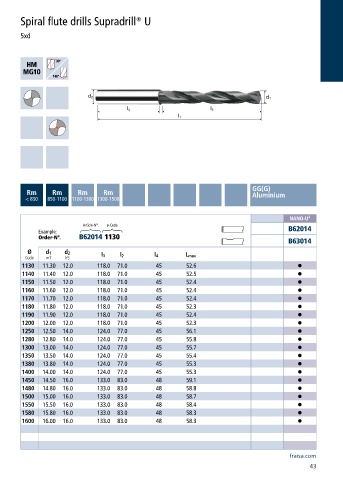

Spiral flute drills Supradrill® U
5xd
GG(G)
Rm Rm Rm Rm Aluminium
< 850 850-1100 1100-1300 1300-1500
NANO-U²
Article-N°. ø-Code
Example: B62014
Order-N°. B62014 1130
B63014
Ø d 1 d 2
Code m7 h5 l 1 l 2 l 4 L max
1130 11.30 12.0 118.0 71.0 45 52.6 •
1140 11.40 12.0 118.0 71.0 45 52.5 •
1150 11.50 12.0 118.0 71.0 45 52.4 •
1160 11.60 12.0 118.0 71.0 45 52.4 •
1170 11.70 12.0 118.0 71.0 45 52.4 •
1180 11.80 12.0 118.0 71.0 45 52.3 •
1190 11.90 12.0 118.0 71.0 45 52.4 •
1200 12.00 12.0 118.0 71.0 45 52.3 •
1250 12.50 14.0 124.0 77.0 45 56.1 •
1280 12.80 14.0 124.0 77.0 45 55.8 •
1300 13.00 14.0 124.0 77.0 45 55.7 •
1350 13.50 14.0 124.0 77.0 45 55.4 •
1380 13.80 14.0 124.0 77.0 45 55.3 •
1400 14.00 14.0 124.0 77.0 45 55.3 •
1450 14.50 16.0 133.0 83.0 48 59.1 •
1480 14.80 16.0 133.0 83.0 48 58.8 •
1500 15.00 16.0 133.0 83.0 48 58.7 •
1550 15.50 16.0 133.0 83.0 48 58.4 •
1580 15.80 16.0 133.0 83.0 48 58.3 •
1600 16.00 16.0 133.0 83.0 48 58.3 •
