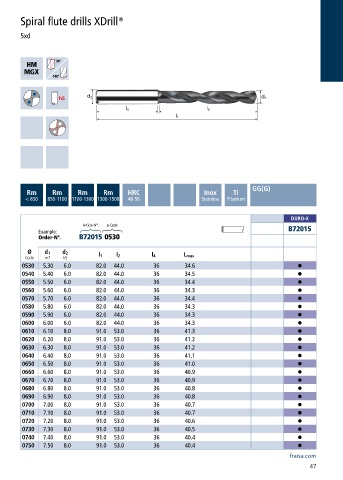

Page 49 - Carbide drills I Thread cutting tools 2023

Spiral flute drills XDrill®

5xd

GG(G)
Rm Rm Rm Rm HRC Inox Ti
< 850 850-1100 1100-1300 1300-1500 48-56 Stainless Titanium

DURO-X
Article-N°. ø-Code
Example: B72015
Order-N°. B72015 0530
Ø d 1 d 2
Code m7 h5 l 1 l 2 l 4 L max
0530 5.30 6.0 82.0 44.0 36 34.6 •
0540 5.40 6.0 82.0 44.0 36 34.5 •
0550 5.50 6.0 82.0 44.0 36 34.4 •
0560 5.60 6.0 82.0 44.0 36 34.3 •
0570 5.70 6.0 82.0 44.0 36 34.4 •
0580 5.80 6.0 82.0 44.0 36 34.3 •
0590 5.90 6.0 82.0 44.0 36 34.3 •
0600 6.00 6.0 82.0 44.0 36 34.3 •
0610 6.10 8.0 91.0 53.0 36 41.3 •
0620 6.20 8.0 91.0 53.0 36 41.2 •
0630 6.30 8.0 91.0 53.0 36 41.2 •
0640 6.40 8.0 91.0 53.0 36 41.1 •
0650 6.50 8.0 91.0 53.0 36 41.0 •
0660 6.60 8.0 91.0 53.0 36 40.9 •
0670 6.70 8.0 91.0 53.0 36 40.9 •
0680 6.80 8.0 91.0 53.0 36 40.8 •
0690 6.90 8.0 91.0 53.0 36 40.8 •
0700 7.00 8.0 91.0 53.0 36 40.7 •
0710 7.10 8.0 91.0 53.0 36 40.7 •
0720 7.20 8.0 91.0 53.0 36 40.6 •
0730 7.30 8.0 91.0 53.0 36 40.5 •
0740 7.40 8.0 91.0 53.0 36 40.4 •
0750 7.50 8.0 91.0 53.0 36 40.4 •
fraisa.com
47
