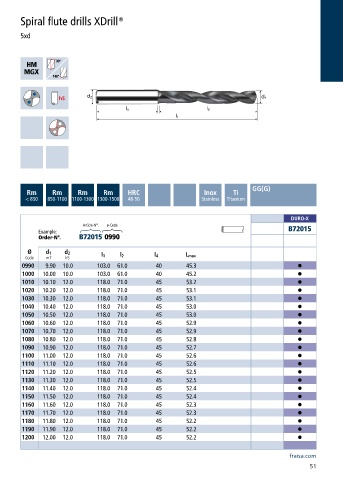

Spiral flute drills XDrill®

5xd

GG(G)
Rm Rm Rm Rm HRC Inox Ti
< 850 850-1100 1100-1300 1300-1500 48-56 Stainless Titanium

DURO-X
Article-N°. ø-Code
Example: B72015
Order-N°. B72015 0990
Ø d 1 d 2
Code m7 h5 l 1 l 2 l 4 L max
0990 9.90 10.0 103.0 61.0 40 45.3 •
1000 10.00 10.0 103.0 61.0 40 45.2 •
1010 10.10 12.0 118.0 71.0 45 53.2 •
1020 10.20 12.0 118.0 71.0 45 53.1 •
1030 10.30 12.0 118.0 71.0 45 53.1 •
1040 10.40 12.0 118.0 71.0 45 53.0 •
1050 10.50 12.0 118.0 71.0 45 53.0 •
1060 10.60 12.0 118.0 71.0 45 52.9 •
1070 10.70 12.0 118.0 71.0 45 52.9 •
1080 10.80 12.0 118.0 71.0 45 52.8 •
1090 10.90 12.0 118.0 71.0 45 52.7 •
1100 11.00 12.0 118.0 71.0 45 52.6 •
1110 11.10 12.0 118.0 71.0 45 52.6 •
1120 11.20 12.0 118.0 71.0 45 52.5 •
1130 11.30 12.0 118.0 71.0 45 52.5 •
1140 11.40 12.0 118.0 71.0 45 52.4 •
1150 11.50 12.0 118.0 71.0 45 52.4 •
1160 11.60 12.0 118.0 71.0 45 52.3 •
1170 11.70 12.0 118.0 71.0 45 52.3 •
1180 11.80 12.0 118.0 71.0 45 52.2 •
1190 11.90 12.0 118.0 71.0 45 52.2 •
1200 12.00 12.0 118.0 71.0 45 52.2 •

fraisa.com
51
