Page 55 - Carbide drills I Thread cutting tools 2023
P. 55

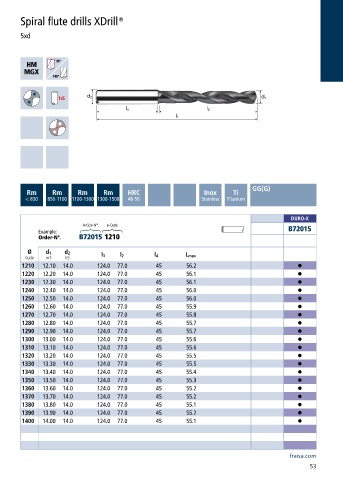

Spiral flute drills XDrill®
5xd
GG(G)
Rm Rm Rm Rm HRC Inox Ti
< 850 850-1100 1100-1300 1300-1500 48-56 Stainless Titanium
DURO-X
Article-N°. ø-Code
Example: B72015
Order-N°. B72015 1210
Ø d 1 d 2
Code m7 h5 l 1 l 2 l 4 L max
1210 12.10 14.0 124.0 77.0 45 56.2 •
1220 12.20 14.0 124.0 77.0 45 56.1 •
1230 12.30 14.0 124.0 77.0 45 56.1 •
1240 12.40 14.0 124.0 77.0 45 56.0 •
1250 12.50 14.0 124.0 77.0 45 56.0 •
1260 12.60 14.0 124.0 77.0 45 55.9 •
1270 12.70 14.0 124.0 77.0 45 55.8 •
1280 12.80 14.0 124.0 77.0 45 55.7 •
1290 12.90 14.0 124.0 77.0 45 55.7 •
1300 13.00 14.0 124.0 77.0 45 55.6 •
1310 13.10 14.0 124.0 77.0 45 55.6 •
1320 13.20 14.0 124.0 77.0 45 55.5 •
1330 13.30 14.0 124.0 77.0 45 55.5 •
1340 13.40 14.0 124.0 77.0 45 55.4 •
1350 13.50 14.0 124.0 77.0 45 55.3 •
1360 13.60 14.0 124.0 77.0 45 55.2 •
1370 13.70 14.0 124.0 77.0 45 55.2 •
1380 13.80 14.0 124.0 77.0 45 55.1 •
1390 13.90 14.0 124.0 77.0 45 55.2 •
1400 14.00 14.0 124.0 77.0 45 55.1 •
fraisa.com
53
