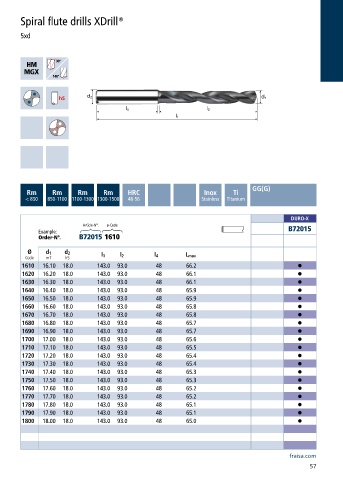

Page 59 - Carbide drills I Thread cutting tools 2023
P. 59
Spiral flute drills XDrill®
5xd
GG(G)
Rm Rm Rm Rm HRC Inox Ti
< 850 850-1100 1100-1300 1300-1500 48-56 Stainless Titanium
DURO-X
Article-N°. ø-Code
Example: B72015
Order-N°. B72015 1610
Ø d 1 d 2
Code m7 h5 l 1 l 2 l 4 L max
1610 16.10 18.0 143.0 93.0 48 66.2 •
1620 16.20 18.0 143.0 93.0 48 66.1 •
1630 16.30 18.0 143.0 93.0 48 66.1 •
1640 16.40 18.0 143.0 93.0 48 65.9 •
1650 16.50 18.0 143.0 93.0 48 65.9 •
1660 16.60 18.0 143.0 93.0 48 65.8 •
1670 16.70 18.0 143.0 93.0 48 65.8 •
1680 16.80 18.0 143.0 93.0 48 65.7 •
1690 16.90 18.0 143.0 93.0 48 65.7 •
1700 17.00 18.0 143.0 93.0 48 65.6 •
1710 17.10 18.0 143.0 93.0 48 65.5 •
1720 17.20 18.0 143.0 93.0 48 65.4 •
1730 17.30 18.0 143.0 93.0 48 65.4 •
1740 17.40 18.0 143.0 93.0 48 65.3 •
1750 17.50 18.0 143.0 93.0 48 65.3 •
1760 17.60 18.0 143.0 93.0 48 65.2 •
1770 17.70 18.0 143.0 93.0 48 65.2 •
1780 17.80 18.0 143.0 93.0 48 65.1 •
1790 17.90 18.0 143.0 93.0 48 65.1 •
1800 18.00 18.0 143.0 93.0 48 65.0 •
fraisa.com
57
