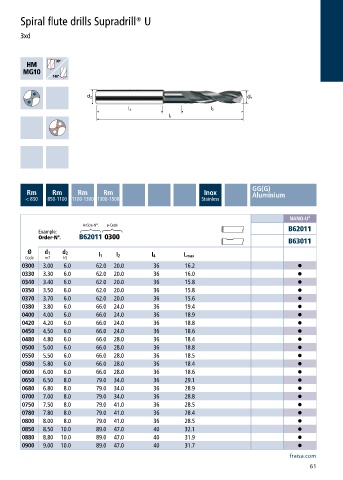

Page 63 - Carbide drills I Thread cutting tools 2023

Spiral flute drills Supradrill® U

3xd

GG(G)
Rm Rm Rm Rm Inox Aluminium
< 850 850-1100 1100-1300 1300-1500 Stainless

NANO-U²
Article-N°. ø-Code
Example: B62011
Order-N°. B62011 0300
B63011
Ø d 1 d 2
Code m7 h5 l 1 l 2 l 4 L max
0300 3.00 6.0 62.0 20.0 36 16.2 •
0330 3.30 6.0 62.0 20.0 36 16.0 •
0340 3.40 6.0 62.0 20.0 36 15.8 •
0350 3.50 6.0 62.0 20.0 36 15.8 •
0370 3.70 6.0 62.0 20.0 36 15.6 •
0380 3.80 6.0 66.0 24.0 36 19.4 •
0400 4.00 6.0 66.0 24.0 36 18.9 •
0420 4.20 6.0 66.0 24.0 36 18.8 •
0450 4.50 6.0 66.0 24.0 36 18.6 •
0480 4.80 6.0 66.0 28.0 36 18.4 •
0500 5.00 6.0 66.0 28.0 36 18.8 •
0550 5.50 6.0 66.0 28.0 36 18.5 •
0580 5.80 6.0 66.0 28.0 36 18.4 •
0600 6.00 6.0 66.0 28.0 36 18.6 •
0650 6.50 8.0 79.0 34.0 36 29.1 •
0680 6.80 8.0 79.0 34.0 36 28.9 •
0700 7.00 8.0 79.0 34.0 36 28.8 •
0750 7.50 8.0 79.0 41.0 36 28.5 •
0780 7.80 8.0 79.0 41.0 36 28.4 •
0800 8.00 8.0 79.0 41.0 36 28.5 •
0850 8.50 10.0 89.0 47.0 40 32.1 •
0880 8.80 10.0 89.0 47.0 40 31.9 •
0900 9.00 10.0 89.0 47.0 40 31.7 •
fraisa.com
61
