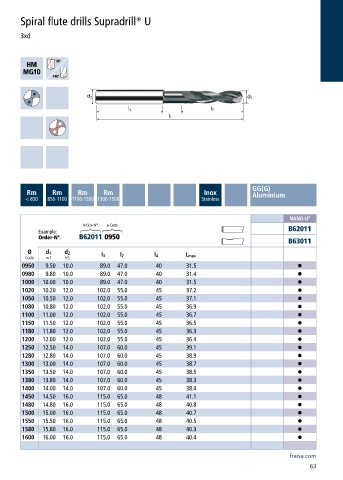

Page 65 - Carbide drills I Thread cutting tools 2023

Spiral flute drills Supradrill® U

3xd

GG(G)
Rm Rm Rm Rm Inox Aluminium
< 850 850-1100 1100-1300 1300-1500 Stainless

NANO-U²
Article-N°. ø-Code
Example: B62011
Order-N°. B62011 0950
B63011
Ø d 1 d 2
Code m7 h5 l 1 l 2 l 4 L max
0950 9.50 10.0 89.0 47.0 40 31.5 •
0980 9.80 10.0 89.0 47.0 40 31.4 •
1000 10.00 10.0 89.0 47.0 40 31.5 •
1020 10.20 12.0 102.0 55.0 45 37.2 •
1050 10.50 12.0 102.0 55.0 45 37.1 •
1080 10.80 12.0 102.0 55.0 45 36.9 •
1100 11.00 12.0 102.0 55.0 45 36.7 •
1150 11.50 12.0 102.0 55.0 45 36.5 •
1180 11.80 12.0 102.0 55.0 45 36.3 •
1200 12.00 12.0 102.0 55.0 45 36.4 •
1250 12.50 14.0 107.0 60.0 45 39.1 •
1280 12.80 14.0 107.0 60.0 45 38.9 •
1300 13.00 14.0 107.0 60.0 45 38.7 •
1350 13.50 14.0 107.0 60.0 45 38.5 •
1380 13.80 14.0 107.0 60.0 45 38.3 •
1400 14.00 14.0 107.0 60.0 45 38.4 •
1450 14.50 16.0 115.0 65.0 48 41.1 •
1480 14.80 16.0 115.0 65.0 48 40.8 •
1500 15.00 16.0 115.0 65.0 48 40.7 •
1550 15.50 16.0 115.0 65.0 48 40.5 •
1580 15.80 16.0 115.0 65.0 48 40.3 •
1600 16.00 16.0 115.0 65.0 48 40.4 •

fraisa.com
63
