P. 57

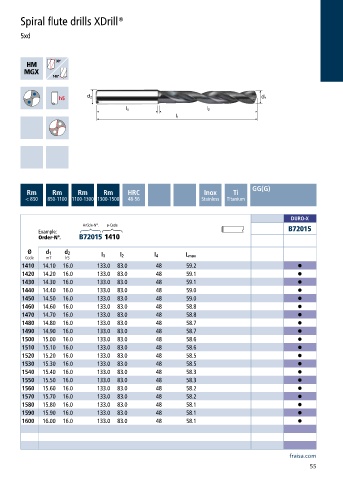

Spiral flute drills XDrill®
5xd
GG(G)
Rm Rm Rm Rm HRC Inox Ti
< 850 850-1100 1100-1300 1300-1500 48-56 Stainless Titanium
DURO-X
Article-N°. ø-Code
Example: B72015
Order-N°. B72015 1410
Ø d 1 d 2
Code m7 h5 l 1 l 2 l 4 L max
1410 14.10 16.0 133.0 83.0 48 59.2 •
1420 14.20 16.0 133.0 83.0 48 59.1 •
1430 14.30 16.0 133.0 83.0 48 59.1 •
1440 14.40 16.0 133.0 83.0 48 59.0 •
1450 14.50 16.0 133.0 83.0 48 59.0 •
1460 14.60 16.0 133.0 83.0 48 58.8 •
1470 14.70 16.0 133.0 83.0 48 58.8 •
1480 14.80 16.0 133.0 83.0 48 58.7 •
1490 14.90 16.0 133.0 83.0 48 58.7 •
1500 15.00 16.0 133.0 83.0 48 58.6 •
1510 15.10 16.0 133.0 83.0 48 58.6 •
1520 15.20 16.0 133.0 83.0 48 58.5 •
1530 15.30 16.0 133.0 83.0 48 58.5 •
1540 15.40 16.0 133.0 83.0 48 58.3 •
1550 15.50 16.0 133.0 83.0 48 58.3 •
1560 15.60 16.0 133.0 83.0 48 58.2 •
1570 15.70 16.0 133.0 83.0 48 58.2 •
1580 15.80 16.0 133.0 83.0 48 58.1 •
1590 15.90 16.0 133.0 83.0 48 58.1 •
1600 16.00 16.0 133.0 83.0 48 58.1 •
fraisa.com
55
