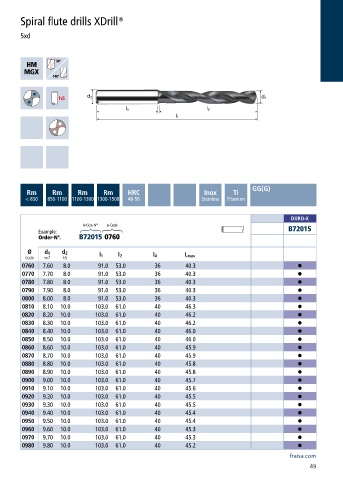

Page 51 - Carbide drills I Thread cutting tools 2023

Spiral flute drills XDrill®

5xd

GG(G)
Rm Rm Rm Rm HRC Inox Ti
< 850 850-1100 1100-1300 1300-1500 48-56 Stainless Titanium

DURO-X
Article-N°. ø-Code
Example: B72015
Order-N°. B72015 0760
Ø d 1 d 2
Code m7 h5 l 1 l 2 l 4 L max
0760 7.60 8.0 91.0 53.0 36 40.3 •
0770 7.70 8.0 91.0 53.0 36 40.3 •
0780 7.80 8.0 91.0 53.0 36 40.3 •
0790 7.90 8.0 91.0 53.0 36 40.3 •
0800 8.00 8.0 91.0 53.0 36 40.3 •
0810 8.10 10.0 103.0 61.0 40 46.3 •
0820 8.20 10.0 103.0 61.0 40 46.2 •
0830 8.30 10.0 103.0 61.0 40 46.2 •
0840 8.40 10.0 103.0 61.0 40 46.0 •
0850 8.50 10.0 103.0 61.0 40 46.0 •
0860 8.60 10.0 103.0 61.0 40 45.9 •
0870 8.70 10.0 103.0 61.0 40 45.9 •
0880 8.80 10.0 103.0 61.0 40 45.8 •
0890 8.90 10.0 103.0 61.0 40 45.8 •
0900 9.00 10.0 103.0 61.0 40 45.7 •
0910 9.10 10.0 103.0 61.0 40 45.6 •
0920 9.20 10.0 103.0 61.0 40 45.5 •
0930 9.30 10.0 103.0 61.0 40 45.5 •
0940 9.40 10.0 103.0 61.0 40 45.4 •
0950 9.50 10.0 103.0 61.0 40 45.4 •
0960 9.60 10.0 103.0 61.0 40 45.3 •
0970 9.70 10.0 103.0 61.0 40 45.3 •
0980 9.80 10.0 103.0 61.0 40 45.2 •
fraisa.com
49
