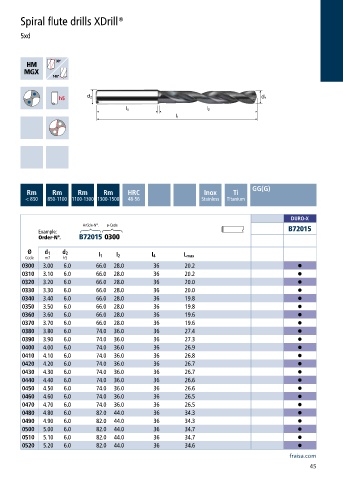

Page 47 - Carbide drills I Thread cutting tools 2023
P. 47
Spiral flute drills XDrill®
5xd
GG(G)
Rm Rm Rm Rm HRC Inox Ti
< 850 850-1100 1100-1300 1300-1500 48-56 Stainless Titanium
DURO-X
Article-N°. ø-Code
Example: B72015
Order-N°. B72015 0300
Ø d 1 d 2
Code m7 h5 l 1 l 2 l 4 L max
0300 3.00 6.0 66.0 28.0 36 20.2 •
0310 3.10 6.0 66.0 28.0 36 20.2 •
0320 3.20 6.0 66.0 28.0 36 20.0 •
0330 3.30 6.0 66.0 28.0 36 20.0 •
0340 3.40 6.0 66.0 28.0 36 19.8 •
0350 3.50 6.0 66.0 28.0 36 19.8 •
0360 3.60 6.0 66.0 28.0 36 19.6 •
0370 3.70 6.0 66.0 28.0 36 19.6 •
0380 3.80 6.0 74.0 36.0 36 27.4 •
0390 3.90 6.0 74.0 36.0 36 27.3 •
0400 4.00 6.0 74.0 36.0 36 26.9 •
0410 4.10 6.0 74.0 36.0 36 26.8 •
0420 4.20 6.0 74.0 36.0 36 26.7 •
0430 4.30 6.0 74.0 36.0 36 26.7 •
0440 4.40 6.0 74.0 36.0 36 26.6 •
0450 4.50 6.0 74.0 36.0 36 26.6 •
0460 4.60 6.0 74.0 36.0 36 26.5 •
0470 4.70 6.0 74.0 36.0 36 26.5 •
0480 4.80 6.0 82.0 44.0 36 34.3 •
0490 4.90 6.0 82.0 44.0 36 34.3 •
0500 5.00 6.0 82.0 44.0 36 34.7 •
0510 5.10 6.0 82.0 44.0 36 34.7 •
0520 5.20 6.0 82.0 44.0 36 34.6 •
fraisa.com
45
