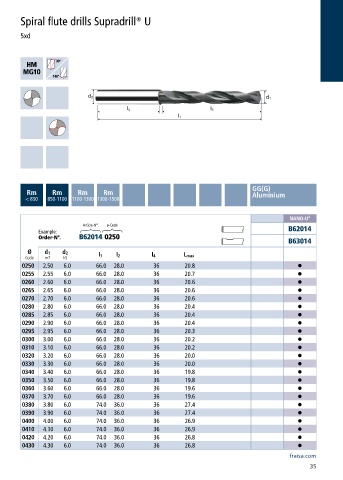

Spiral flute drills Supradrill® U
5xd
GG(G)
Rm Rm Rm Rm Aluminium
< 850 850-1100 1100-1300 1300-1500
NANO-U²
Article-N°. ø-Code
Example: B62014
Order-N°. B62014 0250
B63014
Ø d 1 d 2
Code m7 h5 l 1 l 2 l 4 L max
0250 2.50 6.0 66.0 28.0 36 20.8 •
0255 2.55 6.0 66.0 28.0 36 20.7 •
0260 2.60 6.0 66.0 28.0 36 20.6 •
0265 2.65 6.0 66.0 28.0 36 20.6 •
0270 2.70 6.0 66.0 28.0 36 20.6 •
0280 2.80 6.0 66.0 28.0 36 20.4 •
0285 2.85 6.0 66.0 28.0 36 20.4 •
0290 2.90 6.0 66.0 28.0 36 20.4 •
0295 2.95 6.0 66.0 28.0 36 20.3 •
0300 3.00 6.0 66.0 28.0 36 20.2 •
0310 3.10 6.0 66.0 28.0 36 20.2 •
0320 3.20 6.0 66.0 28.0 36 20.0 •
0330 3.30 6.0 66.0 28.0 36 20.0 •
0340 3.40 6.0 66.0 28.0 36 19.8 •
0350 3.50 6.0 66.0 28.0 36 19.8 •
0360 3.60 6.0 66.0 28.0 36 19.6 •
0370 3.70 6.0 66.0 28.0 36 19.6 •
0380 3.80 6.0 74.0 36.0 36 27.4 •
0390 3.90 6.0 74.0 36.0 36 27.4 •
0400 4.00 6.0 74.0 36.0 36 26.9 •
0410 4.10 6.0 74.0 36.0 36 26.9 •
0420 4.20 6.0 74.0 36.0 36 26.8 •
0430 4.30 6.0 74.0 36.0 36 26.8 •
