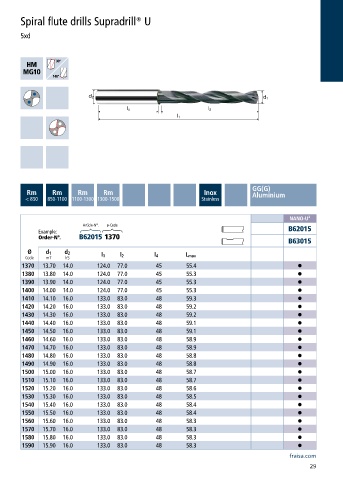

Page 31 - Carbide drills I Thread cutting tools 2023

Spiral flute drills Supradrill® U

5xd

GG(G)
Rm Rm Rm Rm Inox Aluminium
< 850 850-1100 1100-1300 1300-1500 Stainless

NANO-U²
Article-N°. ø-Code
Example: B62015
Order-N°. B62015 1370
B63015
Ø d 1 d 2
Code m7 h5 l 1 l 2 l 4 L max
1370 13.70 14.0 124.0 77.0 45 55.4 •
1380 13.80 14.0 124.0 77.0 45 55.3 •
1390 13.90 14.0 124.0 77.0 45 55.3 •
1400 14.00 14.0 124.0 77.0 45 55.3 •
1410 14.10 16.0 133.0 83.0 48 59.3 •
1420 14.20 16.0 133.0 83.0 48 59.2 •
1430 14.30 16.0 133.0 83.0 48 59.2 •
1440 14.40 16.0 133.0 83.0 48 59.1 •
1450 14.50 16.0 133.0 83.0 48 59.1 •
1460 14.60 16.0 133.0 83.0 48 58.9 •
1470 14.70 16.0 133.0 83.0 48 58.9 •
1480 14.80 16.0 133.0 83.0 48 58.8 •
1490 14.90 16.0 133.0 83.0 48 58.8 •
1500 15.00 16.0 133.0 83.0 48 58.7 •
1510 15.10 16.0 133.0 83.0 48 58.7 •
1520 15.20 16.0 133.0 83.0 48 58.6 •
1530 15.30 16.0 133.0 83.0 48 58.5 •
1540 15.40 16.0 133.0 83.0 48 58.4 •
1550 15.50 16.0 133.0 83.0 48 58.4 •
1560 15.60 16.0 133.0 83.0 48 58.3 •
1570 15.70 16.0 133.0 83.0 48 58.3 •
1580 15.80 16.0 133.0 83.0 48 58.3 •
1590 15.90 16.0 133.0 83.0 48 58.3 •
