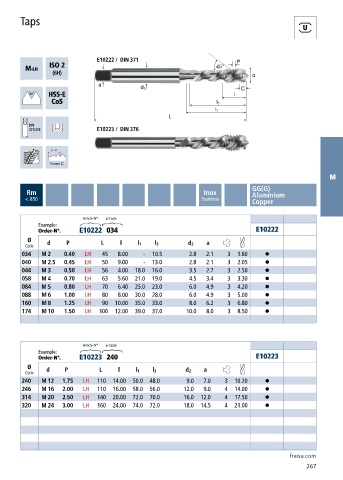

Page 269 - Carbide drills I Thread cutting tools 2023

Taps

E10222 / DIN 371

E10223 / DIN 376

M
GG(G)
Rm Inox Aluminium
< 850 Stainless Copper

Article-N°. ø-Code
Example:
Order-N°. E10222 034 E10222
Ø
Code d P L l l 1 l 3 d 2 a
034 M 2 0.40 LH 45 8.00 - 10.5 2.8 2.1 3 1.60 •
040 M 2.5 0.45 LH 50 9.00 - 13.0 2.8 2.1 3 2.05 •
044 M 3 0.50 LH 56 4.00 18.0 16.0 3.5 2.7 3 2.50 •
058 M 4 0.70 LH 63 5.60 21.0 19.0 4.5 3.4 3 3.30 •
084 M 5 0.80 LH 70 6.40 25.0 23.0 6.0 4.9 3 4.20 •
088 M 6 1.00 LH 80 8.00 30.0 28.0 6.0 4.9 3 5.00 •
160 M 8 1.25 LH 90 10.00 35.0 33.0 8.0 6.2 3 6.80 •
174 M 10 1.50 LH 100 12.00 39.0 37.0 10.0 8.0 3 8.50 •

Article-N°. ø-Code
Example:
Order-N°. E10223 240 E10223
Ø
Code d P L l l 1 l 3 d 2 a
240 M 12 1.75 LH 110 14.00 50.0 48.0 9.0 7.0 3 10.20 •
246 M 16 2.00 LH 110 16.00 58.0 56.0 12.0 9.0 4 14.00 •
314 M 20 2.50 LH 140 20.00 72.0 70.0 16.0 12.0 4 17.50 •
320 M 24 3.00 LH 160 24.00 74.0 72.0 18.0 14.5 4 21.00 •
