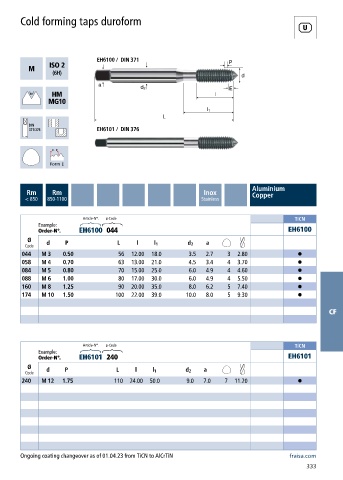

Page 335 - Carbide drills I Thread cutting tools 2023
P. 335
Cold forming taps duroform
EH6100 / DIN 371
EH6101 / DIN 376
Aluminium
Rm Rm Inox Copper
< 850 850-1100 Stainless
Article-N°. ø-Code TiCN
Example:
Order-N°. EH6100 044 EH6100
Ø
Code d P L l l 1 d 2 a
044 M 3 0.50 56 12.00 18.0 3.5 2.7 3 2.80 •
058 M 4 0.70 63 13.00 21.0 4.5 3.4 4 3.70 •
084 M 5 0.80 70 15.00 25.0 6.0 4.9 4 4.60 •
088 M 6 1.00 80 17.00 30.0 6.0 4.9 4 5.50 •
160 M 8 1.25 90 20.00 35.0 8.0 6.2 5 7.40 •
174 M 10 1.50 100 22.00 39.0 10.0 8.0 5 9.30 •
CF
Article-N°. ø-Code TiCN
Example:
Order-N°. EH6101 240 EH6101
Ø
Code d P L l l 1 d 2 a
240 M 12 1.75 110 24.00 50.0 9.0 7.0 7 11.20 •
Ongoing coating changeover as of 01.04.23 from TiCN to AlCrTiN fraisa.com
333
