P. 337

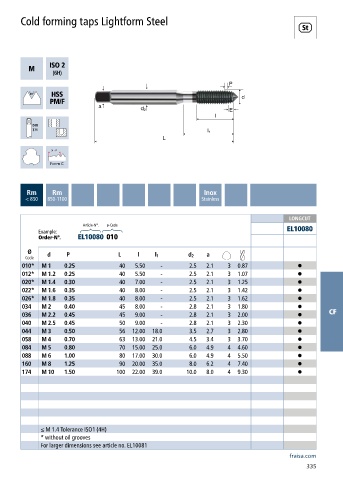

Cold forming taps Lightform Steel





























        Rm      Rm                                        Inox
        < 850  850-1100                                  Stainless


                                                                                 LONGCUT
                        Article-N°.  ø-Code
            Example:                                                             EL10080
            Order-N°.  EL10080  010
         Ø
        Code  d     P             L    l    l 1      d 2  a
       010*  M 1   0.25           40   5.50   -       2.5  2.1  3  0.87             •
       012*  M 1.2  0.25          40   5.50   -       2.5  2.1  3  1.07             •
       020*  M 1.4  0.30          40   7.00   -       2.5  2.1  3  1.25             •
       022*  M 1.6  0.35          40   8.00   -       2.5  2.1  3  1.42             •
       026*  M 1.8  0.35          40   8.00   -       2.5  2.1  3  1.62             •
       034   M 2   0.40           45   8.00   -       2.8  2.1  3  1.80             •
       036   M 2.2  0.45          45   9.00   -       2.8  2.1  3  2.00             •       CF
       040   M 2.5  0.45          50   9.00   -       2.8  2.1  3  2.30             •
       044   M 3   0.50           56  12.00  18.0     3.5  2.7  3  2.80             •
       058   M 4   0.70           63  13.00  21.0     4.5  3.4  3  3.70             •
       084   M 5   0.80           70  15.00  25.0     6.0  4.9  4  4.60             •
       088   M 6   1.00           80  17.00  30.0     6.0  4.9  4  5.50             •
       160   M 8   1.25           90  20.00  35.0     8.0  6.2  4  7.40             •
       174   M 10  1.50          100  22.00  39.0    10.0  8.0  4  9.30             •








            ≤ M 1.4 Tolerance ISO1 (4H)
            * without oil grooves
            For larger dimensions see article no. EL10081
                                                                                 fraisa.com
                                                                                      335
